My fan control board functions far enough to blink LEDs.

@stonebear2 https://en.wikipedia.org/wiki/Special_information_tone

@muddle also, this particular design uses low side switching for the fans - to turn them off, the ground is cut.

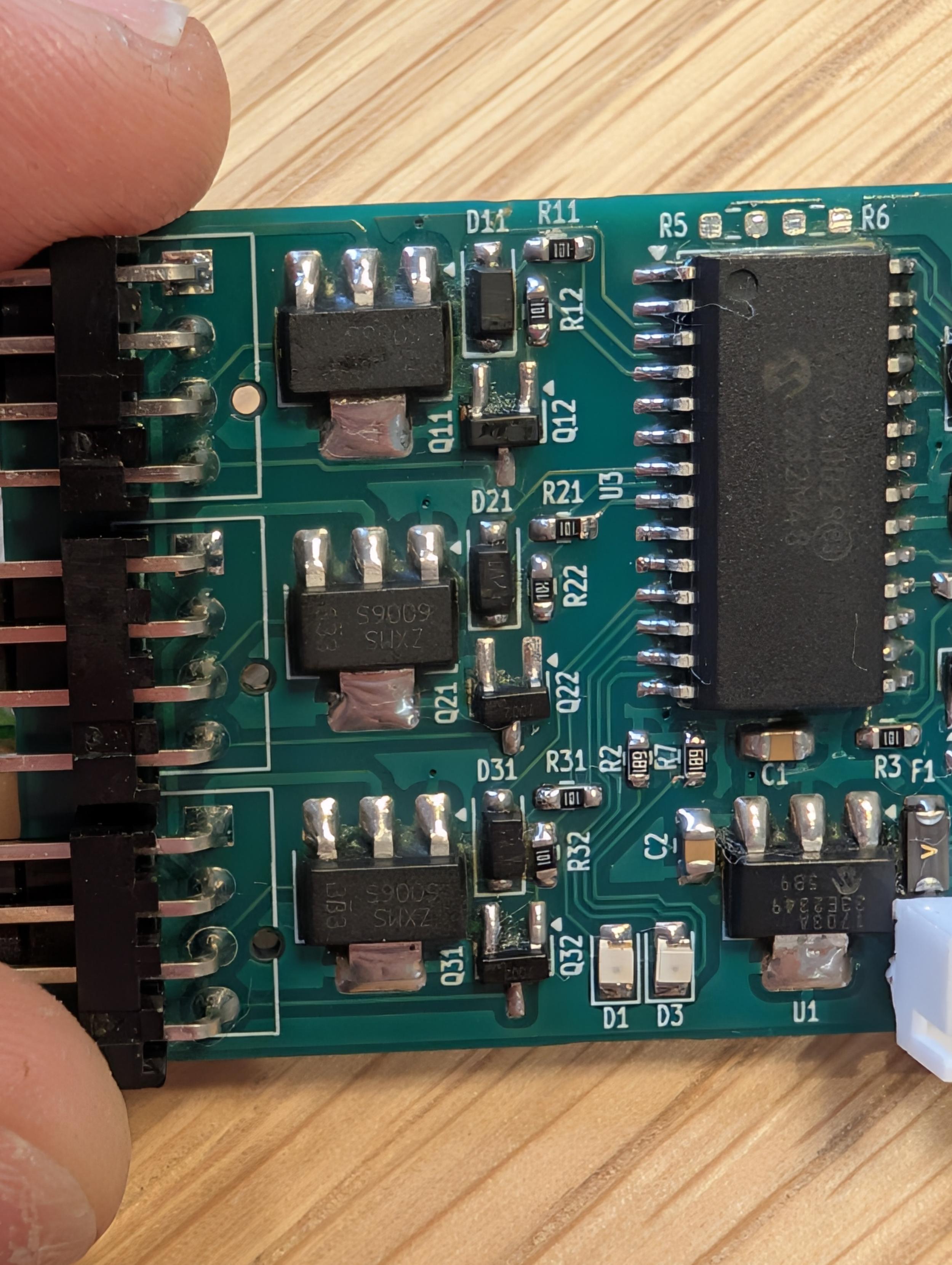

@muddle Each of the fans has a big MOSFET to allow it to be powered on/off, a small MOSFET to drive the PWM, a diode to protect against voltage on the tachometer, and current limiting resistors to prevent the microcontroller from trying to source too much current.

Similar circuitry is in place (except for the big MOSFET) but reversed to connect the microcontroller to the motherboard.

To the right of the microcontroller is a 3.3V linear voltage regulator (normally, a linear voltage regulator to go from 12V to 3.3V would be a bad idea, but the circuit itself only needs to draw maybe a dozen milliamps, so :thisisfine: ).

The component with a V on it is a self-resetting fuse.

@FritzAdalis Nearly all PCs have at least one I2C bus. :-)

The trick is finding a way to access it.

@FritzAdalis Nearly all PCs have at least one I2C bus. :-)

@stonebear2 https://infosec.exchange/@catsalad/116962402233245296

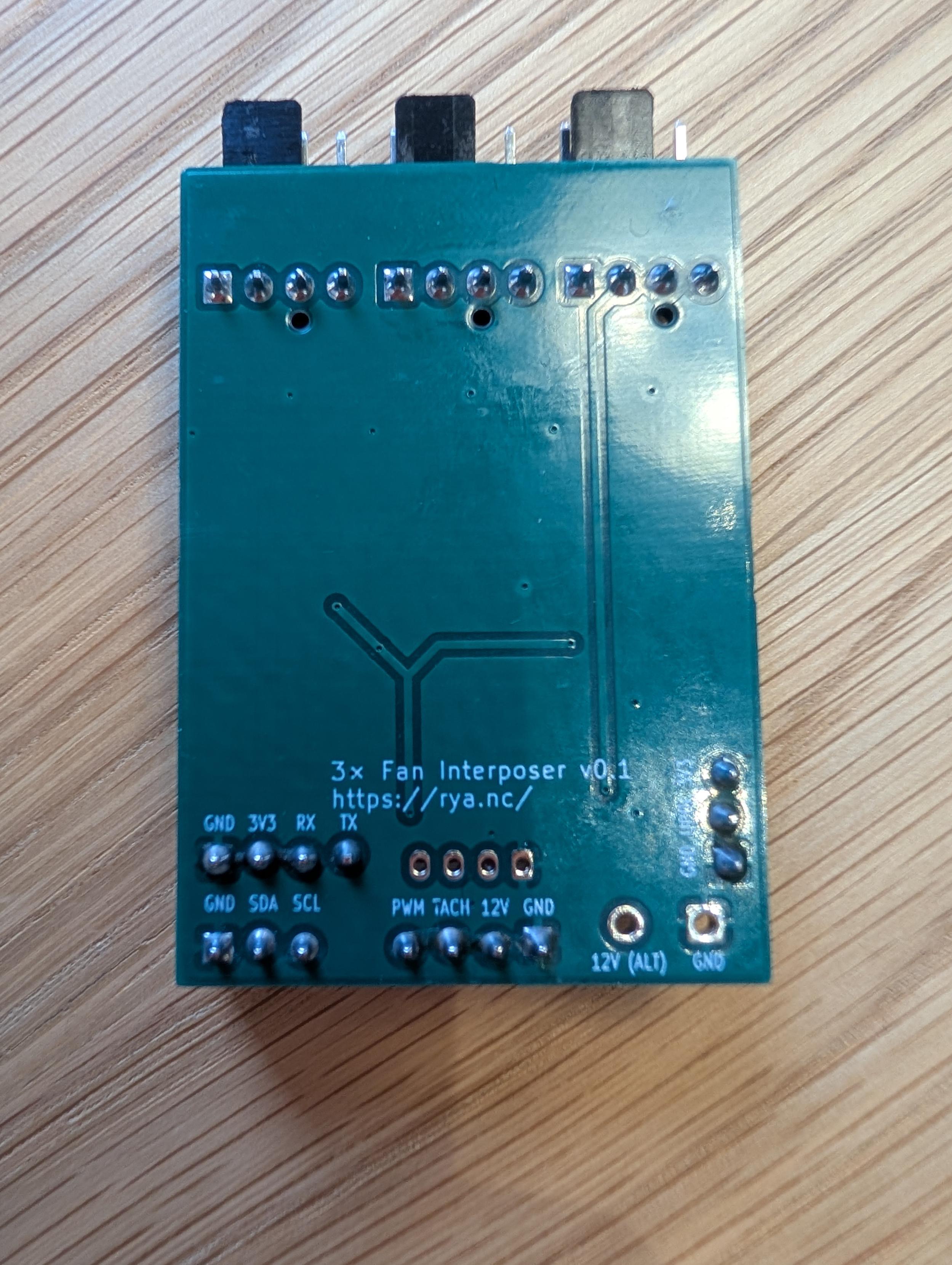

@FritzAdalis The motherboard interface is ground, 12V (or 5V sometimes), PWM speed control, and tachometer for monitoring RPM. My board connects to that, and then has a separate connector for I2C. On the Radxa Rock 5 ITX boards I built it for, I can hook into the I2C bus via the touch panel connector. Alternatively, I have serial broken out.

@fullywoolly It's probably just flux, but I haven't check with a multimeter.

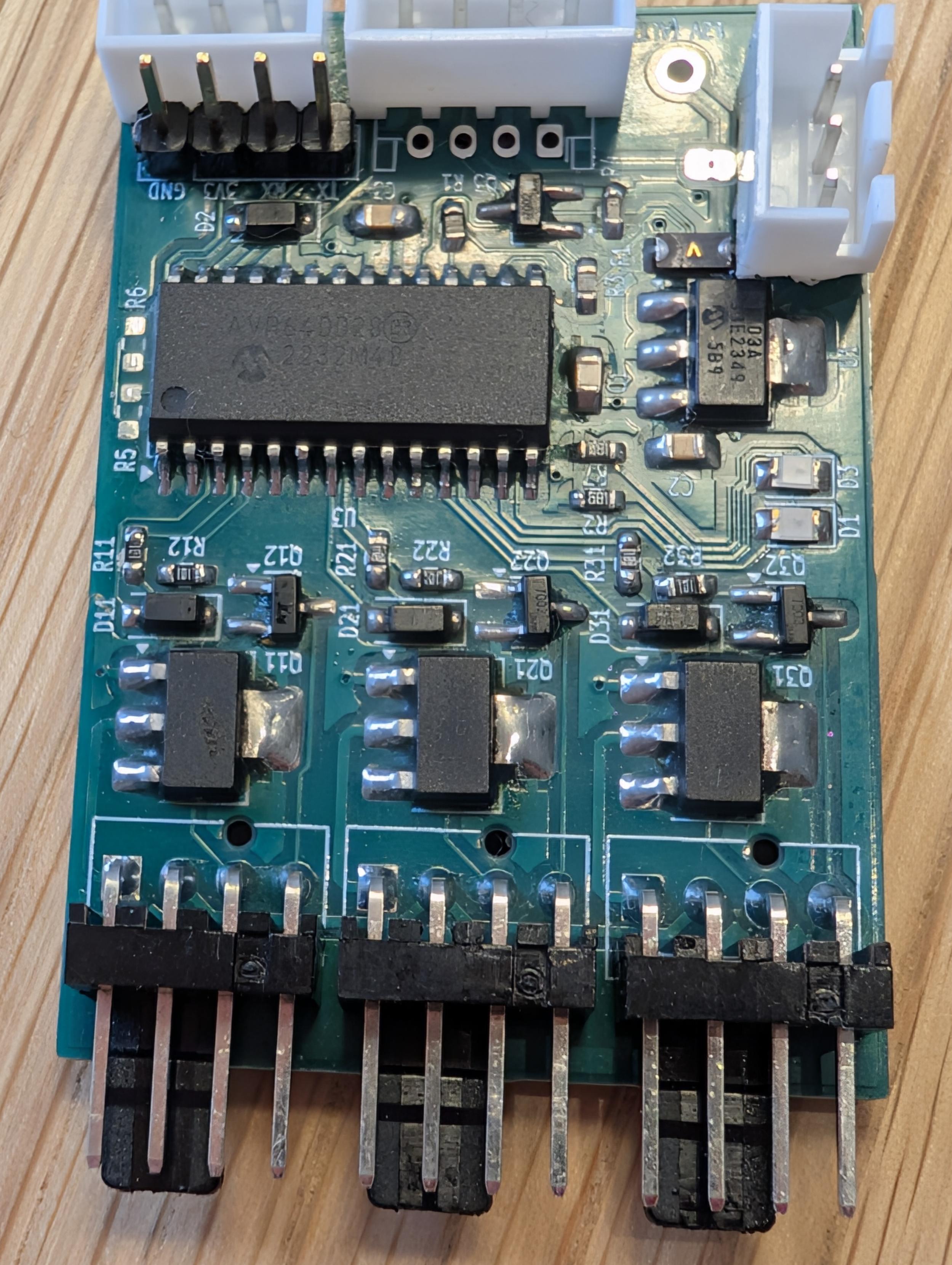

I got one of my fan controllers (I need two) put together.

Its purpose is to connect to a motherboard PWM fan socket and then control up to three separate PWM fans, with I2C for configuration, control, and telemetry, along with serial for debugging.

Have not yet powered it on, anyone want to tell me what I messed up before I let the magic smoke out?

I also still need to write the code for it, lol.

The unpopulated resistor footprints at the top are I2C pull-ups, which I shouldn't need, but can add if I do.
