   ✧✦Catherine✦✧ (whitequark@mastodon.social)'s status on Friday, 23-May-2025 12:08:57 JST ✧✦Catherine✦✧

   have any of you seen an Ethernet PHY in a 100 pin dual row QFN package? I'm coming up blank for now

   • Embed this notice
     ✧✦Catherine✦✧ (whitequark@mastodon.social)'s status on Friday, 23-May-2025 12:16:26 JST ✧✦Catherine✦✧

     in reply to

     looks like this

   • Embed this notice
     ✧✦Catherine✦✧ (whitequark@mastodon.social)'s status on Friday, 23-May-2025 12:32:30 JST ✧✦Catherine✦✧

     in reply to

     actually that seems to be a 96 lead package?

   • Embed this notice
     ✧✦Catherine✦✧ (whitequark@mastodon.social)'s status on Friday, 23-May-2025 12:43:48 JST ✧✦Catherine✦✧

     in reply to

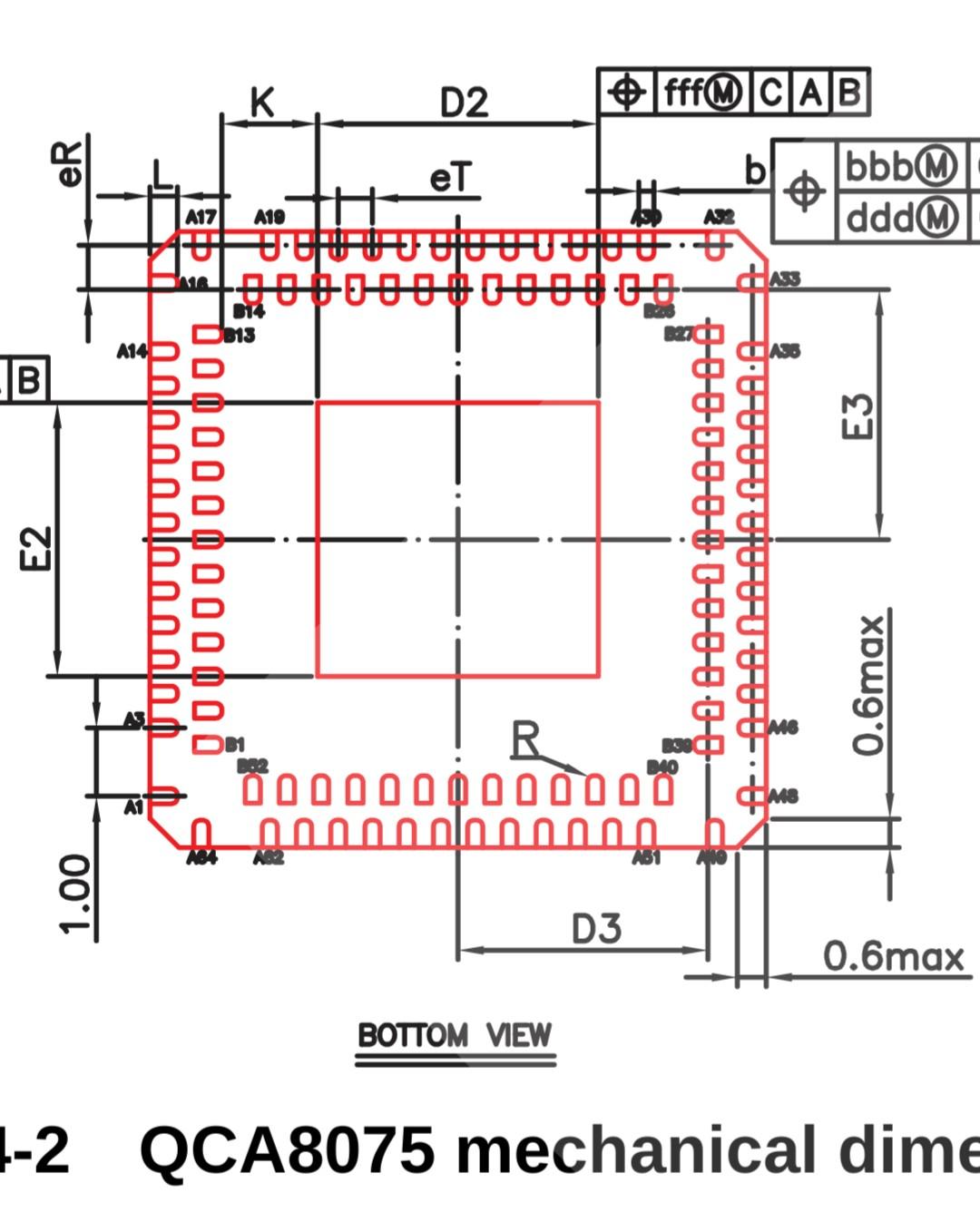

     maybe its a 100 pin package with leads in corners that are supposed to not have footprint pads?..

   • Embed this notice
     ✧✦Catherine✦✧ (whitequark@mastodon.social)'s status on Friday, 23-May-2025 12:55:40 JST ✧✦Catherine✦✧

     in reply to

     almost but no dice

   • Embed this notice
     ✧✦Catherine✦✧ (whitequark@mastodon.social)'s status on Friday, 23-May-2025 13:29:53 JST ✧✦Catherine✦✧

     in reply to

     • Joel Michael

     @jpm brilliant, that's exactly it!

     I owe you a drink of your choice, I think

   • Embed this notice
     Joel Michael (jpm@aus.social)'s status on Friday, 23-May-2025 13:29:54 JST Joel Michael

     in reply to

     @whitequark Possibly 88E1111?

     https://www.marvell.com/content/dam/marvell/en/public-collateral/transceivers/marvell-phys-transceivers-alaska-88e1111-datasheet.pdf

   • Embed this notice
     ✧✦Catherine✦✧ (whitequark@mastodon.social)'s status on Friday, 23-May-2025 13:30:49 JST ✧✦Catherine✦✧

     in reply to

     • Joel Michael

     it's almost certainly Marvell 88E1111!!

     thanks to Joel Michael @jpm who identified it, it's a perfect match footprint wise, let me probe it

   • Embed this notice
     ✧✦Catherine✦✧ (whitequark@mastodon.social)'s status on Friday, 23-May-2025 13:57:10 JST ✧✦Catherine✦✧

     in reply to

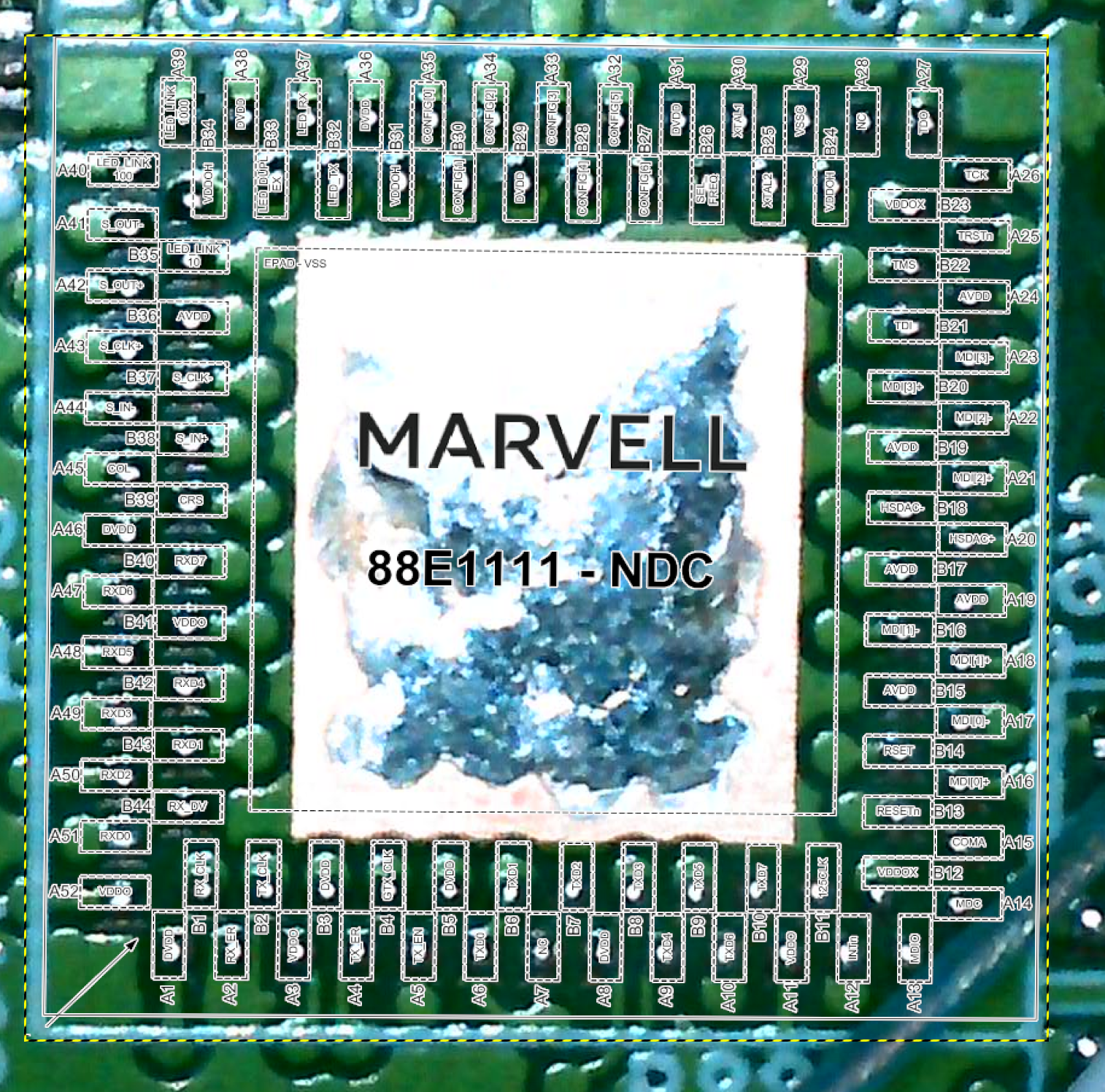

     perfect match by pinout!

   • Embed this notice
     ✧✦Catherine✦✧ (whitequark@mastodon.social)'s status on Friday, 23-May-2025 14:46:51 JST ✧✦Catherine✦✧

     in reply to

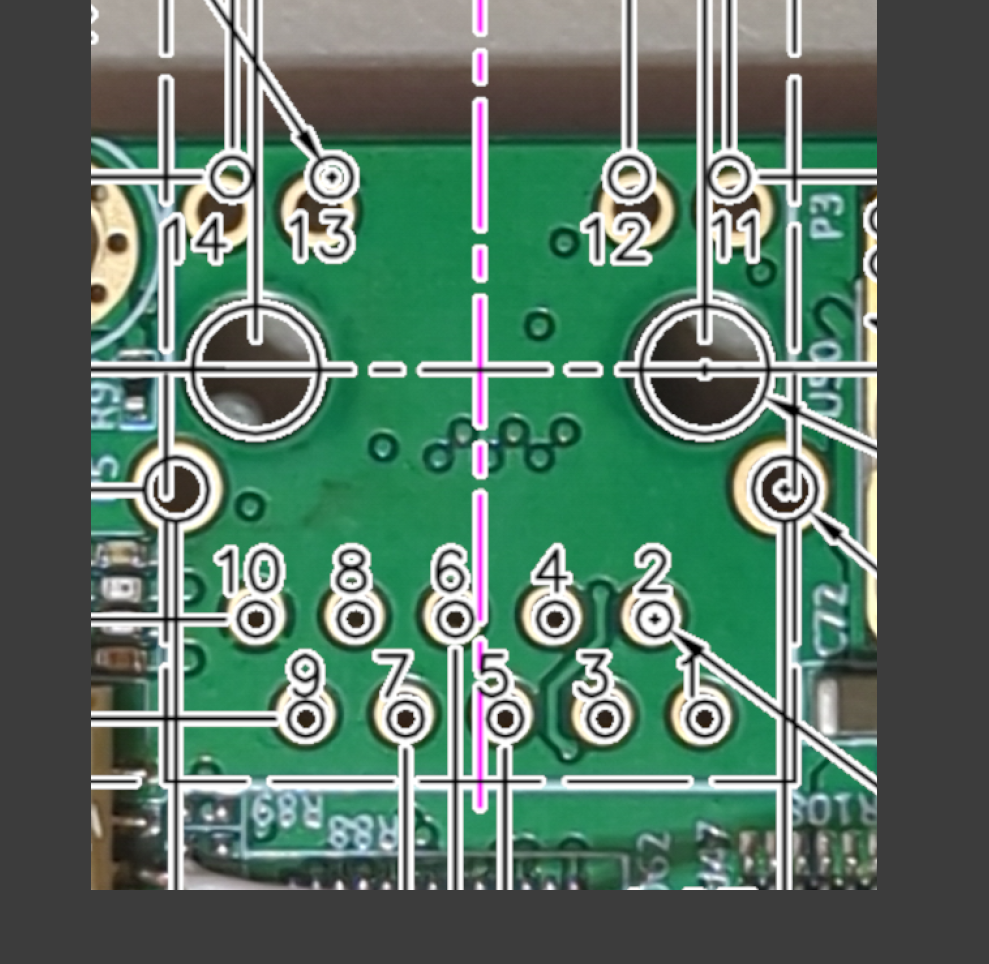

     not quiiiiite this jack

   • Embed this notice
     ✧✦Catherine✦✧ (whitequark@mastodon.social)'s status on Friday, 23-May-2025 14:50:14 JST ✧✦Catherine✦✧

     in reply to

     • Joel Michael

     @jpm yeah I don't know how I missed it... I certainly tried all of these terms in four different search engines

   • Embed this notice
     Joel Michael (jpm@aus.social)'s status on Friday, 23-May-2025 14:50:15 JST Joel Michael

     in reply to

     @whitequark The biggest hint was it is 96 DQFN, combined with “ethernet” and the first search hit was it. Appears that pin 1 is marked by a dot on the board, and the data lines on the chip appear to be pointed towards the DNP 8P8C socket on the left edge of the board, so that was enough for me to suggest it.

   • Embed this notice
     ✧✦Catherine✦✧ (whitequark@mastodon.social)'s status on Friday, 23-May-2025 14:50:35 JST ✧✦Catherine✦✧

     in reply to

     what's this coax connector called?

   • Embed this notice
     ✧✦Catherine✦✧ (whitequark@mastodon.social)'s status on Friday, 23-May-2025 14:50:51 JST ✧✦Catherine✦✧

     in reply to

     • Joel Michael

     @jpm haha, works ^^

   • Embed this notice
     Joel Michael (jpm@aus.social)'s status on Friday, 23-May-2025 14:50:52 JST Joel Michael

     in reply to

     @whitequark Of you ever make it to .au, or if I make it to .uk again, you’re on (but I owe you at least that for making Amaranth and Glasgow)

   • Embed this notice
     ✧✦Catherine✦✧ (whitequark@mastodon.social)'s status on Friday, 23-May-2025 14:54:33 JST ✧✦Catherine✦✧

     in reply to

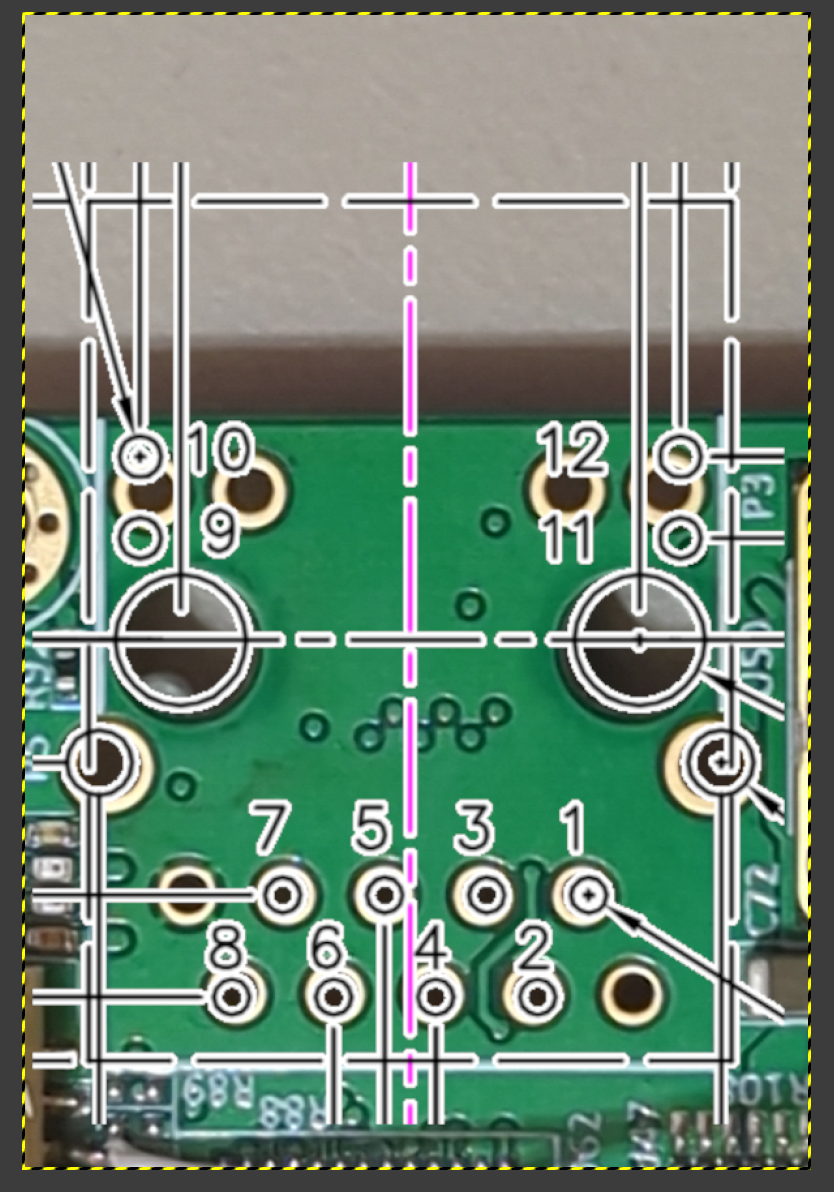

     not this jack either

     i have 25 more pages of them to go T___T

   • Embed this notice
     Dr. ir. Brian R. Pauw (doc@mastodon.social)'s status on Friday, 23-May-2025 15:01:49 JST Dr. ir. Brian R. Pauw

     in reply to

     @whitequark these? https://en.wikipedia.org/wiki/Hirose_U.FL?wprov=sfti1

   • Embed this notice
     AlexB (vmp_@mastodon.social)'s status on Friday, 23-May-2025 15:02:03 JST AlexB

     in reply to

     @whitequark MMCX? /guess

   • Embed this notice
     ✧✦Catherine✦✧ (whitequark@mastodon.social)'s status on Friday, 23-May-2025 15:02:40 JST ✧✦Catherine✦✧

     in reply to

     • Dr. ir. Brian R. Pauw

     @doc nope, the ones on the board protrude 5.3mm up

   • Embed this notice
     ✧✦Catherine✦✧ (whitequark@mastodon.social)'s status on Friday, 23-May-2025 15:03:08 JST ✧✦Catherine✦✧

     in reply to

     • AlexB

     @vmp_ MMCX has a beveled edge, this one is just a tube

   • Embed this notice
     ✧✦Catherine✦✧ (whitequark@mastodon.social)'s status on Friday, 23-May-2025 15:56:09 JST ✧✦Catherine✦✧

     in reply to

     • Joel Michael

     @jpm yeah

   • Embed this notice
     Joel Michael (jpm@aus.social)'s status on Friday, 23-May-2025 15:56:10 JST Joel Michael

     in reply to

     @whitequark It’s 14-pin so that would narrow the search space a bit? That would probably be a pair of dual-colour LEDs

   • Embed this notice
     ✧✦Catherine✦✧ (whitequark@mastodon.social)'s status on Friday, 23-May-2025 17:59:48 JST ✧✦Catherine✦✧

     in reply to

     • Joel Michael

     @jpm ... it would really help if LCSC had "pin count" as a search criterion

   • Embed this notice
     ✧✦Catherine✦✧ (whitequark@mastodon.social)'s status on Friday, 23-May-2025 18:23:49 JST ✧✦Catherine✦✧

     in reply to

     • Joel Michael

     @jpm tbf mouser does that too

   • Embed this notice
     Joel Michael (jpm@aus.social)'s status on Friday, 23-May-2025 18:23:50 JST Joel Michael

     in reply to

     @whitequark Oof yeah the LCSC parametric search, where your options are sometimes “-“, “no”, “plugin”, and “yellow/尿”

   • Embed this notice
     ✧✦Catherine✦✧ (whitequark@mastodon.social)'s status on Friday, 23-May-2025 18:24:02 JST ✧✦Catherine✦✧

     in reply to

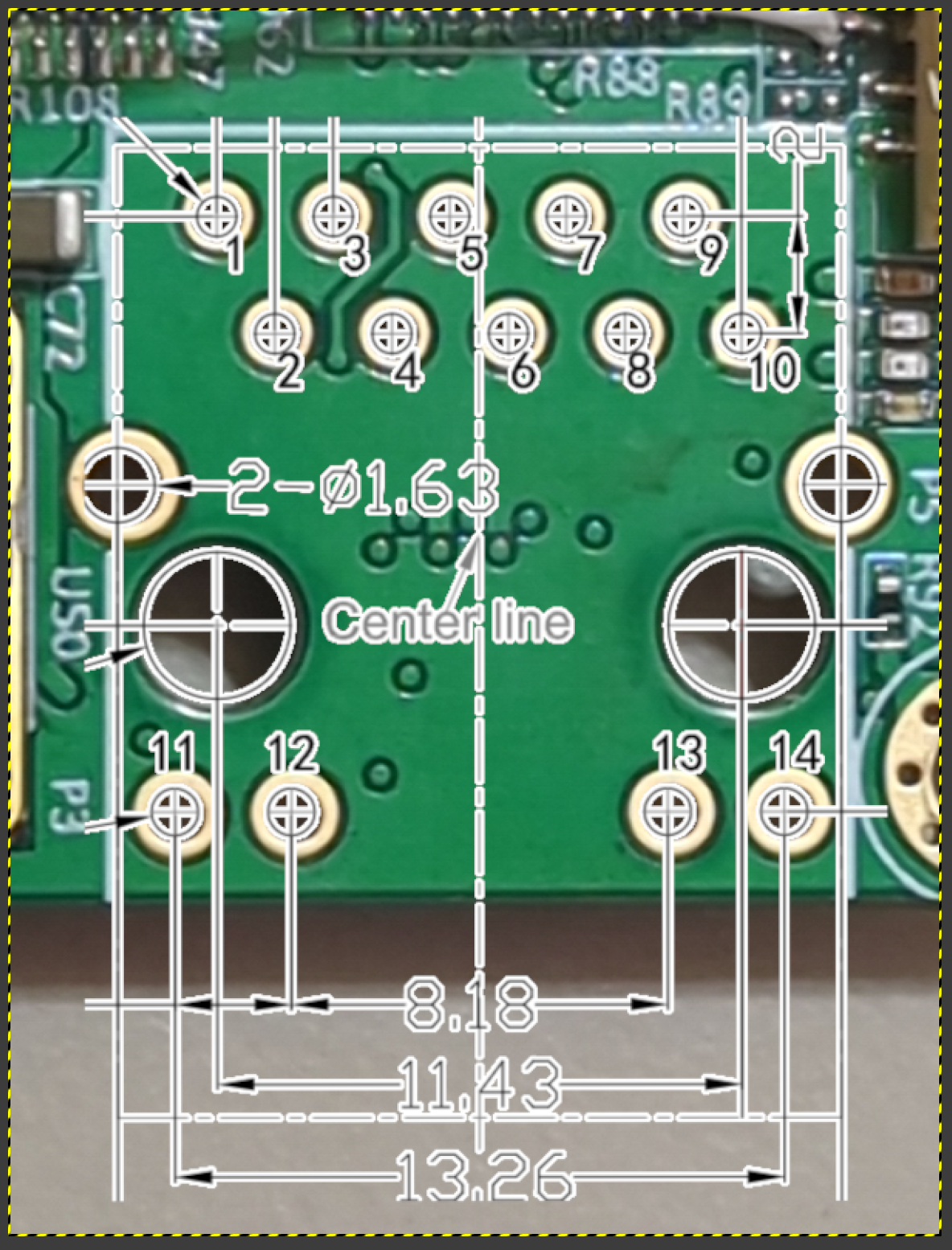

     oh FINALLY i got it

   • Embed this notice
     ✧✦Catherine✦✧ (whitequark@mastodon.social)'s status on Friday, 23-May-2025 18:40:30 JST ✧✦Catherine✦✧

     in reply to

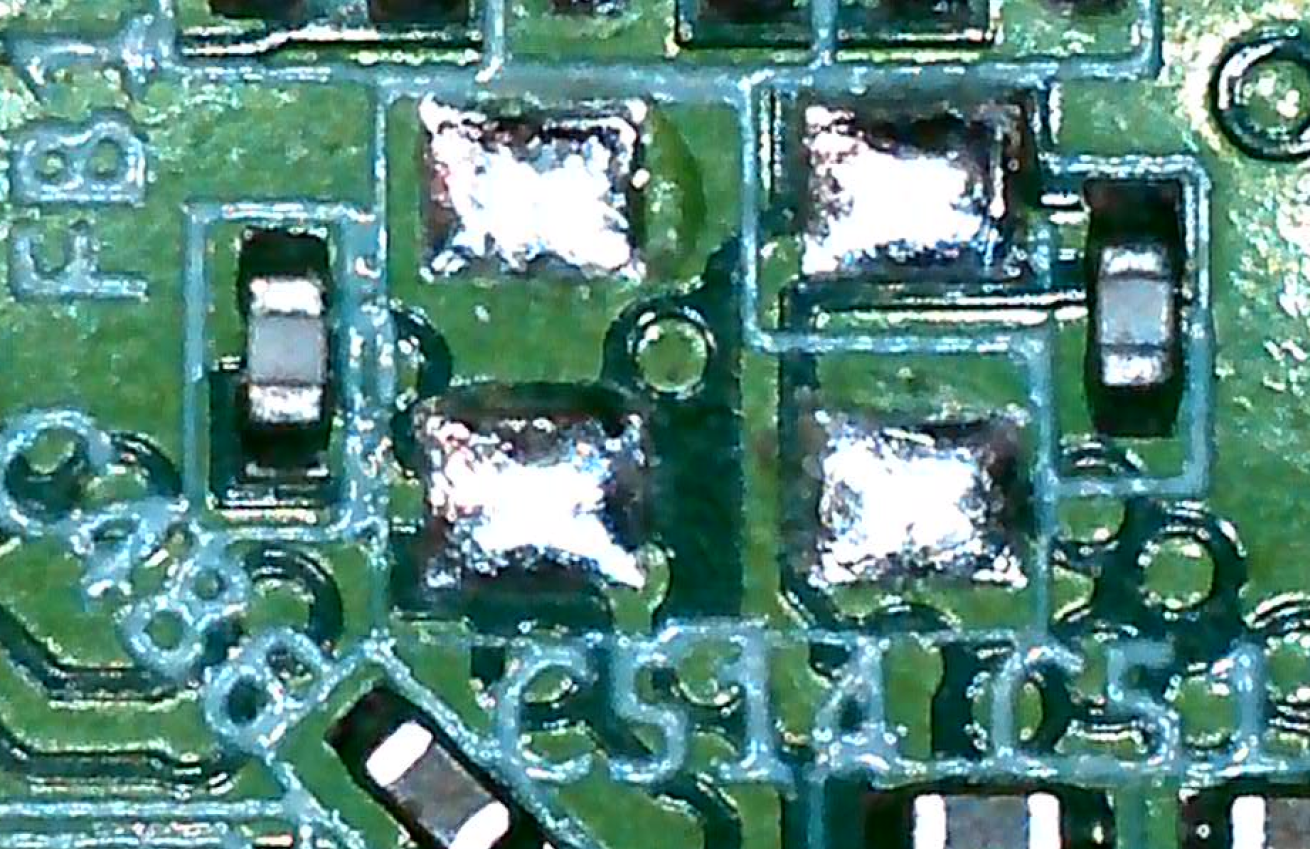

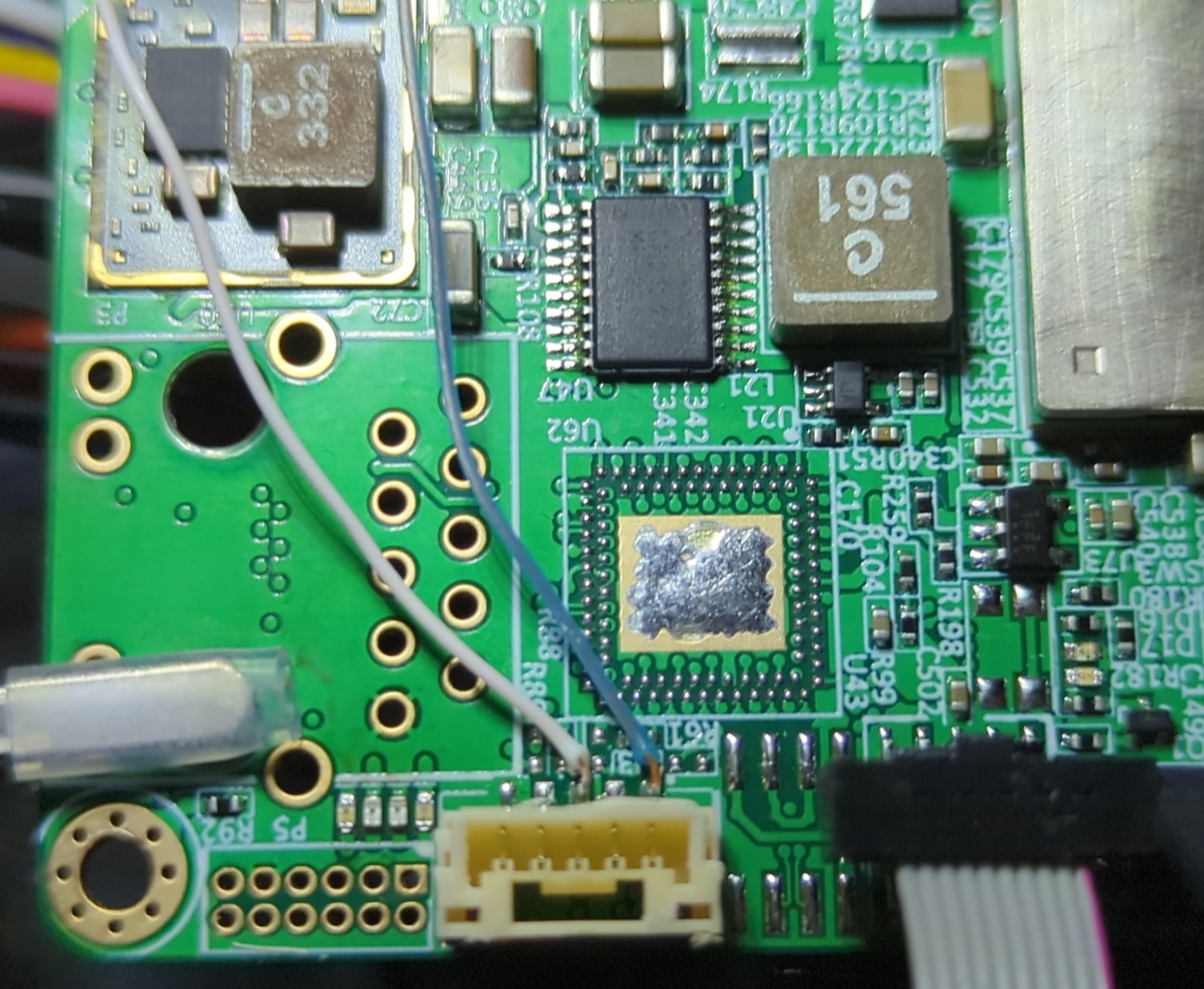

     very nice of the board manufacurers to depop the crystal and phy, but leave all the other passives required to run them

   • Embed this notice
     ✧✦Catherine✦✧ (whitequark@mastodon.social)'s status on Friday, 23-May-2025 19:00:50 JST ✧✦Catherine✦✧

     in reply to

     • Henning Paul DC4HP

     @hennichodernich how the hell did you figure it out?

   • Embed this notice
     Henning Paul DC4HP (hennichodernich@radiosocial.de)'s status on Friday, 23-May-2025 19:00:52 JST Henning Paul DC4HP

     in reply to

     @whitequark Still reversing the Shahed? 😉

   • Embed this notice
     ✧✦Catherine✦✧ (whitequark@mastodon.social)'s status on Friday, 23-May-2025 19:27:16 JST ✧✦Catherine✦✧

     in reply to

     • Henning Paul DC4HP

     @hennichodernich right. well, yeah. I think I can turn the CRPA subsystem into a pretty good 4T4R phase coherent SDR, which is simply not something that is currently available on the market; best you got is ADALM PLUTO (which has a very similar architecture but is 2T2R)

   • Embed this notice
     Henning Paul DC4HP (hennichodernich@radiosocial.de)'s status on Friday, 23-May-2025 19:27:17 JST Henning Paul DC4HP

     in reply to

     @whitequark I can tell from the pixels and the fact that I've seen quite lot of Shaheds in my life[1].

     [1] On Twitter. From Ukrainian accounts.

   • Embed this notice
     ✧✦Catherine✦✧ (whitequark@mastodon.social)'s status on Friday, 23-May-2025 19:39:33 JST ✧✦Catherine✦✧

     in reply to

     • Henning Paul DC4HP

     @hennichodernich this thing has two AD9361s, so you get 4 inputs, no?

   • Embed this notice
     Henning Paul DC4HP (hennichodernich@radiosocial.de)'s status on Friday, 23-May-2025 19:39:34 JST Henning Paul DC4HP

     in reply to

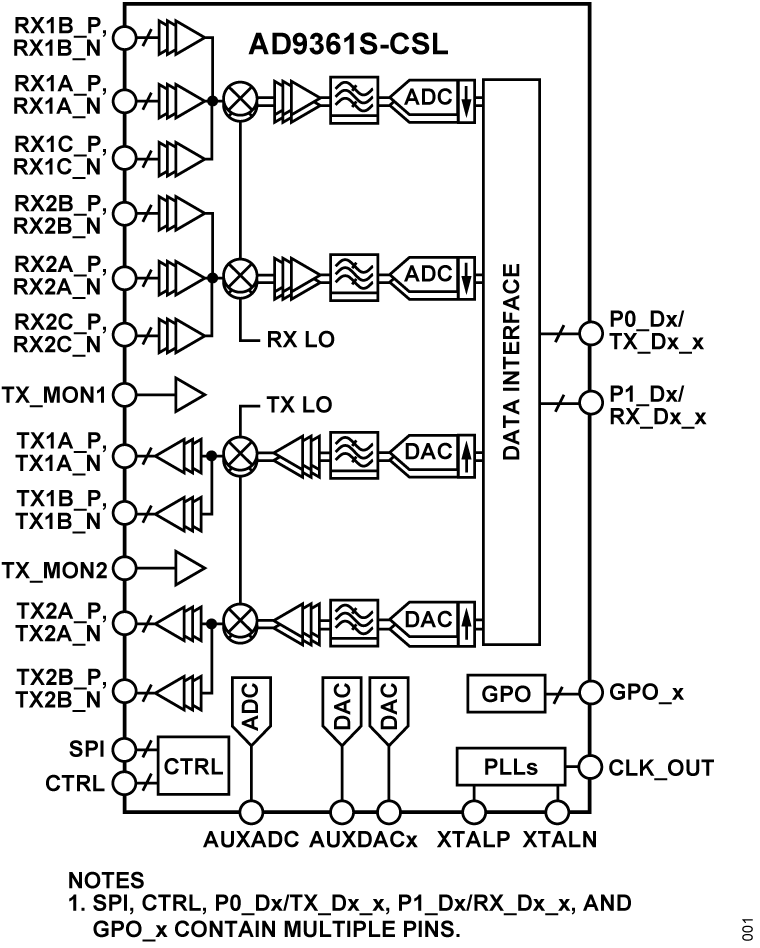

     @whitequark But doesn't the AD9361S still only have 2 Rx and 2 Tx chains? It does have twice as many outputs and thrice as many inputs, but those can't be used simultaneously, right?

   • Embed this notice
     ✧✦Catherine✦✧ (whitequark@mastodon.social)'s status on Friday, 23-May-2025 19:48:33 JST ✧✦Catherine✦✧

     in reply to

     • F4GRX Sébastien
     • AlexB

     @f4grx @vmp_ appears so

   • Embed this notice
     F4GRX Sébastien (f4grx@chaos.social)'s status on Friday, 23-May-2025 19:48:35 JST F4GRX Sébastien

     in reply to

     • AlexB

     @whitequark @vmp_ cheap chinese mmcx?

   • Embed this notice
     ✧✦Catherine✦✧ (whitequark@mastodon.social)'s status on Friday, 23-May-2025 19:49:15 JST ✧✦Catherine✦✧

     in reply to

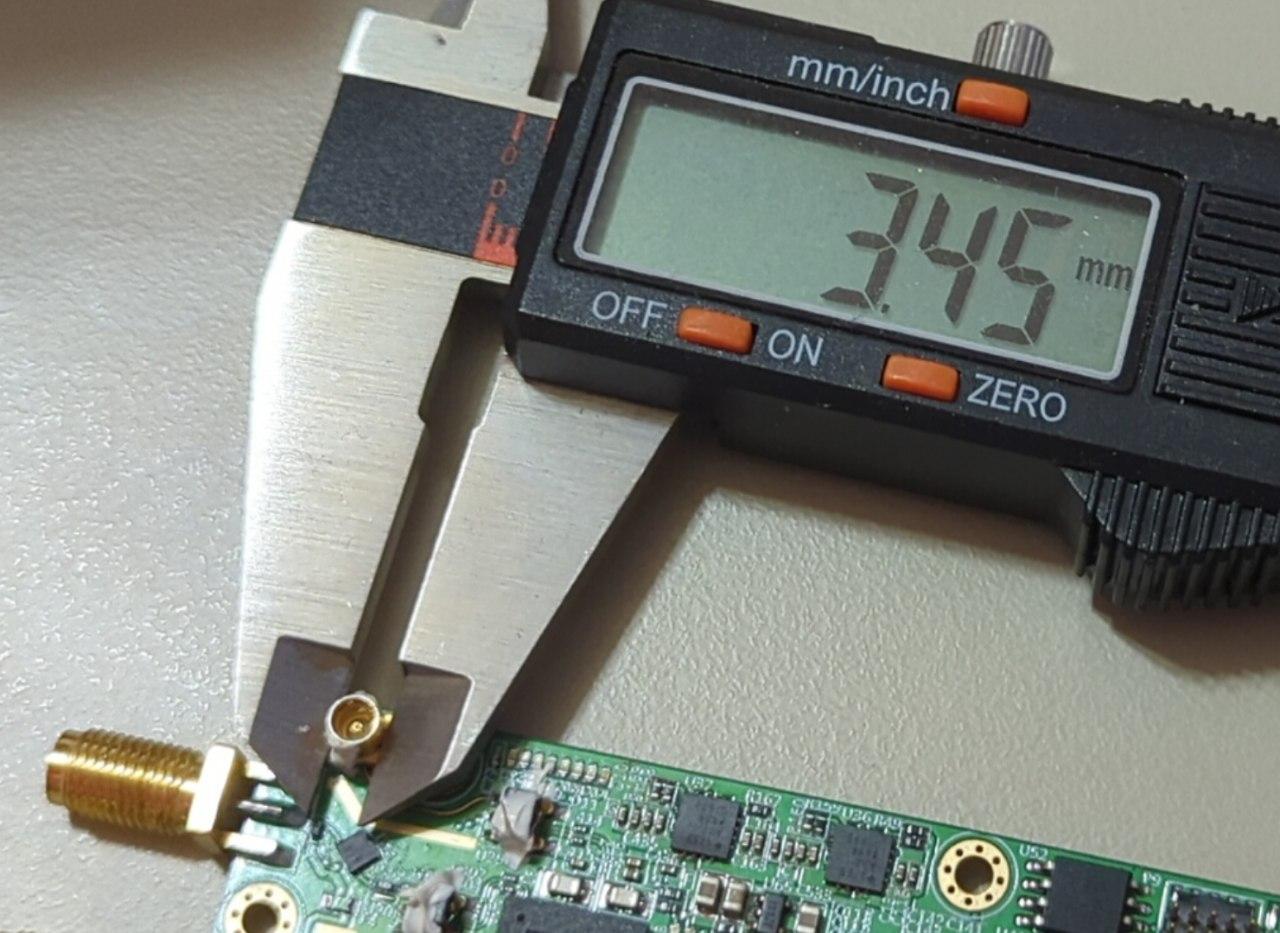

     the coax connector appears to match MMCX when measured; very similar to MMCX-J-P-H-ST-TH1

   • Embed this notice
     ✧✦Catherine✦✧ (whitequark@mastodon.social)'s status on Friday, 23-May-2025 19:58:08 JST ✧✦Catherine✦✧

     in reply to

     • Henning Paul DC4HP

     @hennichodernich I haven't gotten down to that detail on the RF chain but given that the original purpose of the device is phase coherent reception from 4 antennas, they must have

     let me check the ASIC that I think is the clock source

   • Embed this notice
     Henning Paul DC4HP (hennichodernich@radiosocial.de)'s status on Friday, 23-May-2025 19:58:09 JST Henning Paul DC4HP

     in reply to

     @whitequark Ah, ok, thanks for the clarification. Do they have somehow coupled the LOs in order to get them coherent? Because usually that's the tricky part. AD's "standalone" modulators and demodulators have dedicated LO inputs and outputs so you can daisy-chain them. I always wanted to build a MIMO SDR with them, too.

   • Embed this notice
     ✧✦Catherine✦✧ (whitequark@mastodon.social)'s status on Friday, 23-May-2025 19:58:21 JST ✧✦Catherine✦✧

     in reply to

     • Henning Paul DC4HP

     @hennichodernich do you have Signal or Matrix?

   • Embed this notice
     ✧✦Catherine✦✧ (whitequark@mastodon.social)'s status on Saturday, 24-May-2025 00:56:30 JST ✧✦Catherine✦✧

     in reply to

     • Lukas
     • Henning Paul DC4HP

     @karotte @hennichodernich it's really weird, isn't it? iirc you can do up to about 60 Msps

   • Embed this notice
     Lukas (karotte@chaos.social)'s status on Saturday, 24-May-2025 00:56:32 JST Lukas

     in reply to

     • Henning Paul DC4HP

     @hennichodernich @whitequark I'm a bit stumped that I can't find the DAC/ADC sample rate prominently listed in the datasheet.

   • Embed this notice
     ✧✦Catherine✦✧ (whitequark@mastodon.social)'s status on Saturday, 24-May-2025 00:59:12 JST ✧✦Catherine✦✧

     in reply to

     • Lukas
     • Henning Paul DC4HP

     @hennichodernich @karotte this device doesn't use the S, it's the AD9361BBCZ, normal commercial version

   • Embed this notice
     Henning Paul DC4HP (hennichodernich@radiosocial.de)'s status on Saturday, 24-May-2025 00:59:14 JST Henning Paul DC4HP

     in reply to

     • Lukas

     @karotte @whitequark The AD9361S seems to be heavily NDA'ed. The AD9361 datasheet is publicly available.

   • Embed this notice
     Henning Paul DC4HP (hennichodernich@radiosocial.de)'s status on Saturday, 24-May-2025 01:04:16 JST Henning Paul DC4HP

     in reply to

     @whitequark @karotte Oh, okay, so I was on the wrong track.

   • Embed this notice
     ✧✦Catherine✦✧ (whitequark@mastodon.social)'s status on Saturday, 24-May-2025 01:13:33 JST ✧✦Catherine✦✧

     in reply to

     • Lukas
     • Henning Paul DC4HP

     @hennichodernich @karotte yeah the entire thing is built with commercial grade components (I haven't found even a single industrial grade one, at least in this subassembly)
