    Tube❄️Time (tubetime@mastodon.social)'s status on Friday, 02-May-2025 15:45:20 JST Tube❄️Time Tube❄️Time

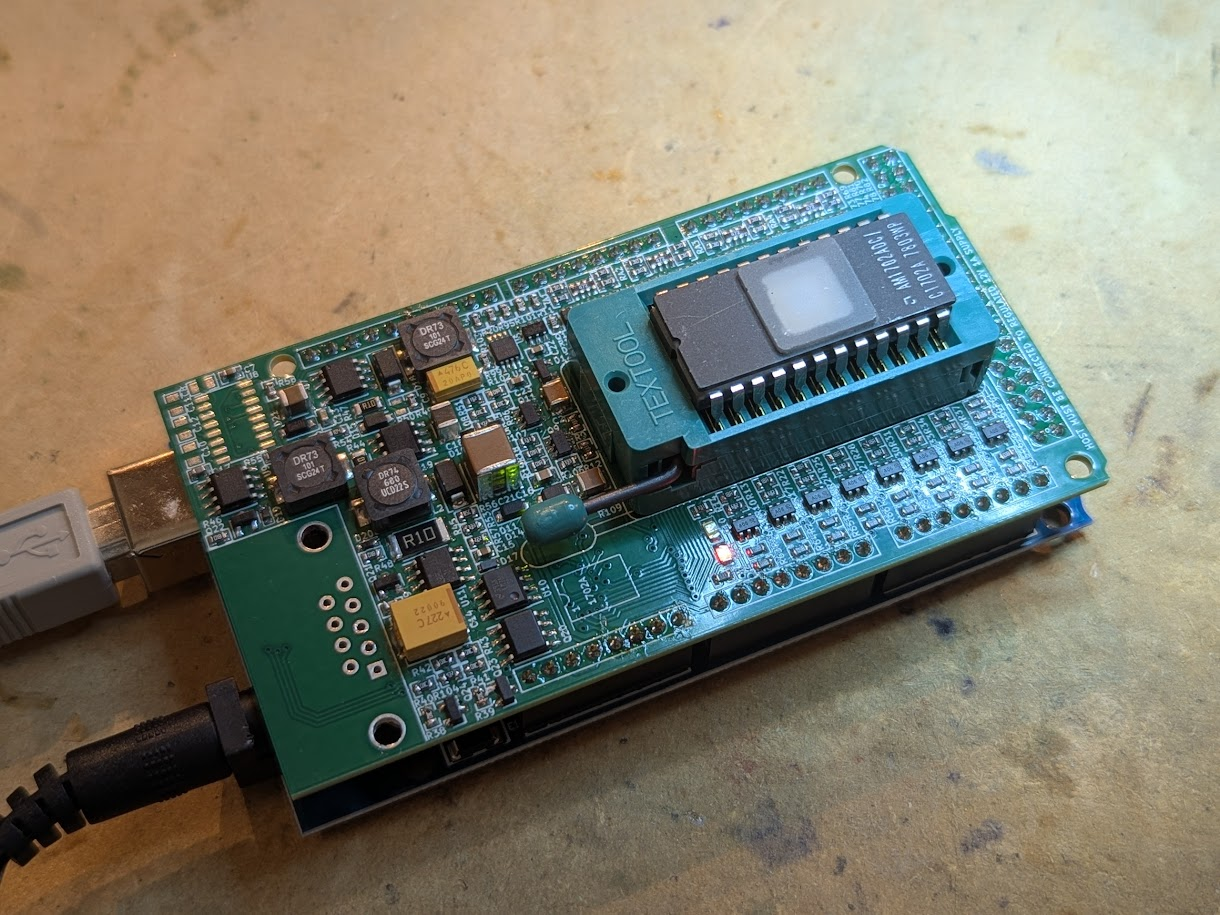

    i built a 1702A EPROM programmer! this design is from https://www.mattmillman.com/projects/hveprom-project/a-compact-programmer-for-1702a-eproms/

    In conversation about a month ago from mastodon.social permalink

    Attachments


    1. https://files.mastodon.social/media_attachments/files/114/434/919/530/601/457/original/80cd377784b3cc6f.png
    2. No result found on File_thumbnail lookup.
      A compact programmer for 1702A EPROMs
      from admin
    • Embed this notice
      Tube❄️Time (tubetime@mastodon.social)'s status on Friday, 02-May-2025 15:45:19 JST Tube❄️Time Tube❄️Time
      in reply to

      here's the structure. the top half of the image is the address decoder and the bottom half is the array of EPROM cells.

      In conversation about a month ago permalink

      Attachments


      1. https://files.mastodon.social/media_attachments/files/114/435/718/220/155/303/original/b2ad35c83ab1e688.png
    • Embed this notice
      Tube❄️Time (tubetime@mastodon.social)'s status on Friday, 02-May-2025 15:45:19 JST Tube❄️Time Tube❄️Time
      in reply to

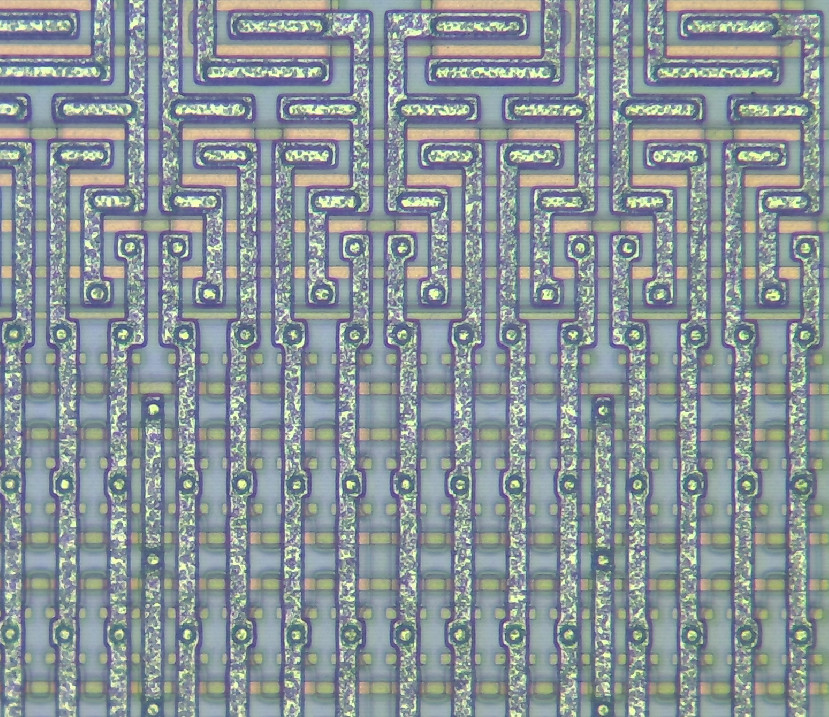

      here are four EPROM cells. the critical element is a transistor (circled) that has a floating gate -- a control electrode with no external connection! modern flash memories also use floating gates, but the construction is quite different.

      In conversation about a month ago permalink

      Attachments


      1. https://files.mastodon.social/media_attachments/files/114/435/720/386/656/530/original/27d9f27954abe637.png

      2. https://files.mastodon.social/media_attachments/files/114/435/721/719/510/870/original/88b9d3e77e2528a6.png
      ✧✦Catherine✦✧ repeated this.
    • Embed this notice
      Tube❄️Time (tubetime@mastodon.social)'s status on Friday, 02-May-2025 15:45:19 JST Tube❄️Time Tube❄️Time
      in reply to

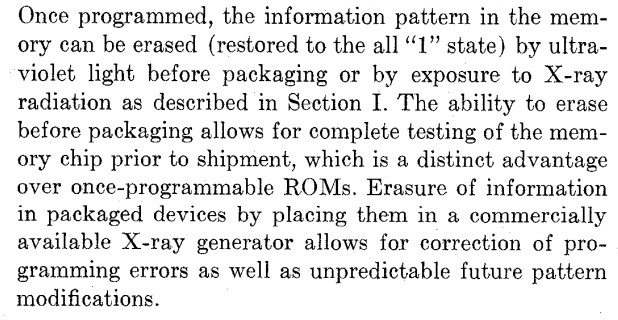

      the first EPROM devices were intended to be erased using X-rays, but ultraviolet light turned out to be a more practical method (X-rays can damage chips).

      In conversation about a month ago permalink

      Attachments


      1. https://files.mastodon.social/media_attachments/files/114/435/724/274/084/849/original/fe04629eafe906e2.png
    • Embed this notice
      Tube❄️Time (tubetime@mastodon.social)'s status on Friday, 02-May-2025 15:45:20 JST Tube❄️Time Tube❄️Time
      in reply to

      astute viewers may note that this is a legit 🧐 3M Textool socket. it cost me $25.62, or approximately 10x what a cheap clone socket costs.

      In conversation about a month ago permalink
    • Embed this notice
      Tube❄️Time (tubetime@mastodon.social)'s status on Friday, 02-May-2025 15:45:20 JST Tube❄️Time Tube❄️Time
      in reply to

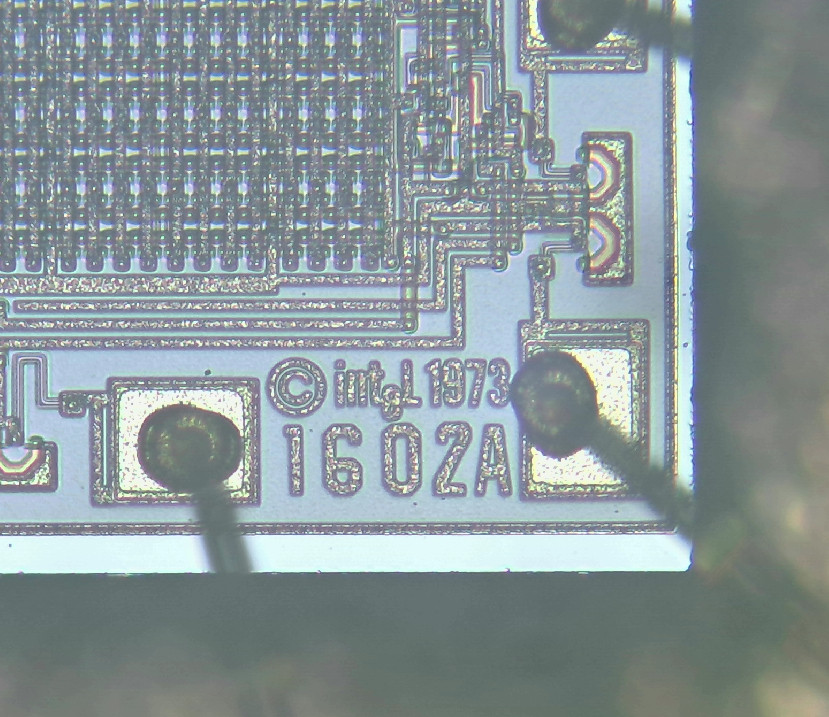

      the 1702A is quite old as you can see by the copyright on the die. (the 1602A is the non-windowed version of the part, which is identical except for the package)

      In conversation about a month ago permalink

      Attachments


      1. https://files.mastodon.social/media_attachments/files/114/435/713/184/590/783/original/6c35ce6a957d587b.png
