Tim 🎮
I'm sick with another cold or something, so I'm idly sketching out a 3D printable case for an ITX retro gaming rig, the primary feature of which will be a 15-pin gameport socket up front.
I've started a few projects like this, but never run them right through to the end - if you've ever wondered what designing a PC case is like, just draw a whole bunch of differently shaped rectangles and try putting them neatly in a box. Dunno yet if this one will see the light of day beyond this screenshot.
Tim 🎮
15-pin gameport, PS/2 keyboard and mouse, and two sockets for that new-fangled USB standard that probably won't catch on. What more front I/O could you possibly want on a Windows 98 machine?
I've just made a fair bit more work for myself in fully kitting out this front panel, but I think all the "big" case problems are now solved.
Tim 🎮

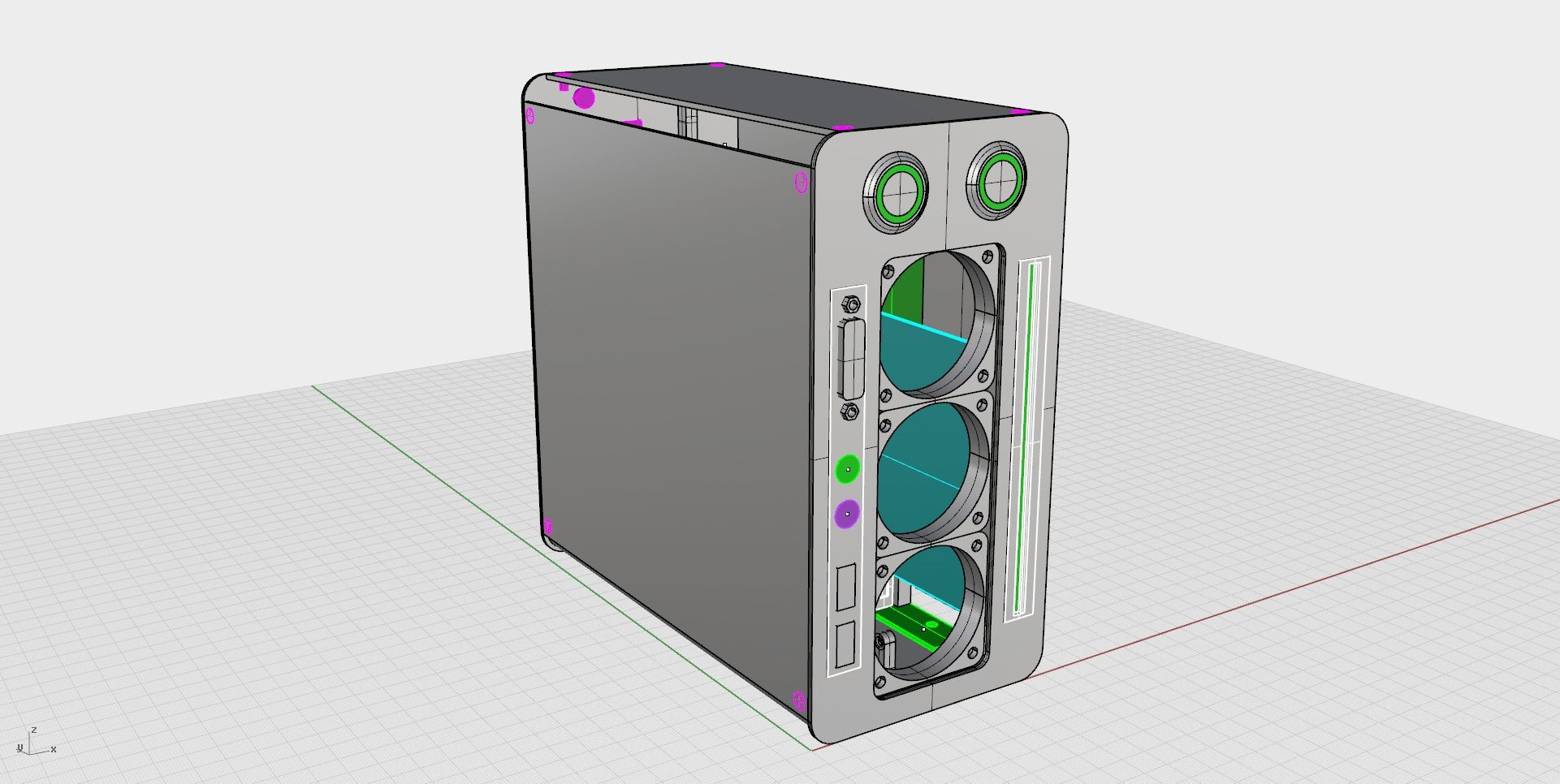

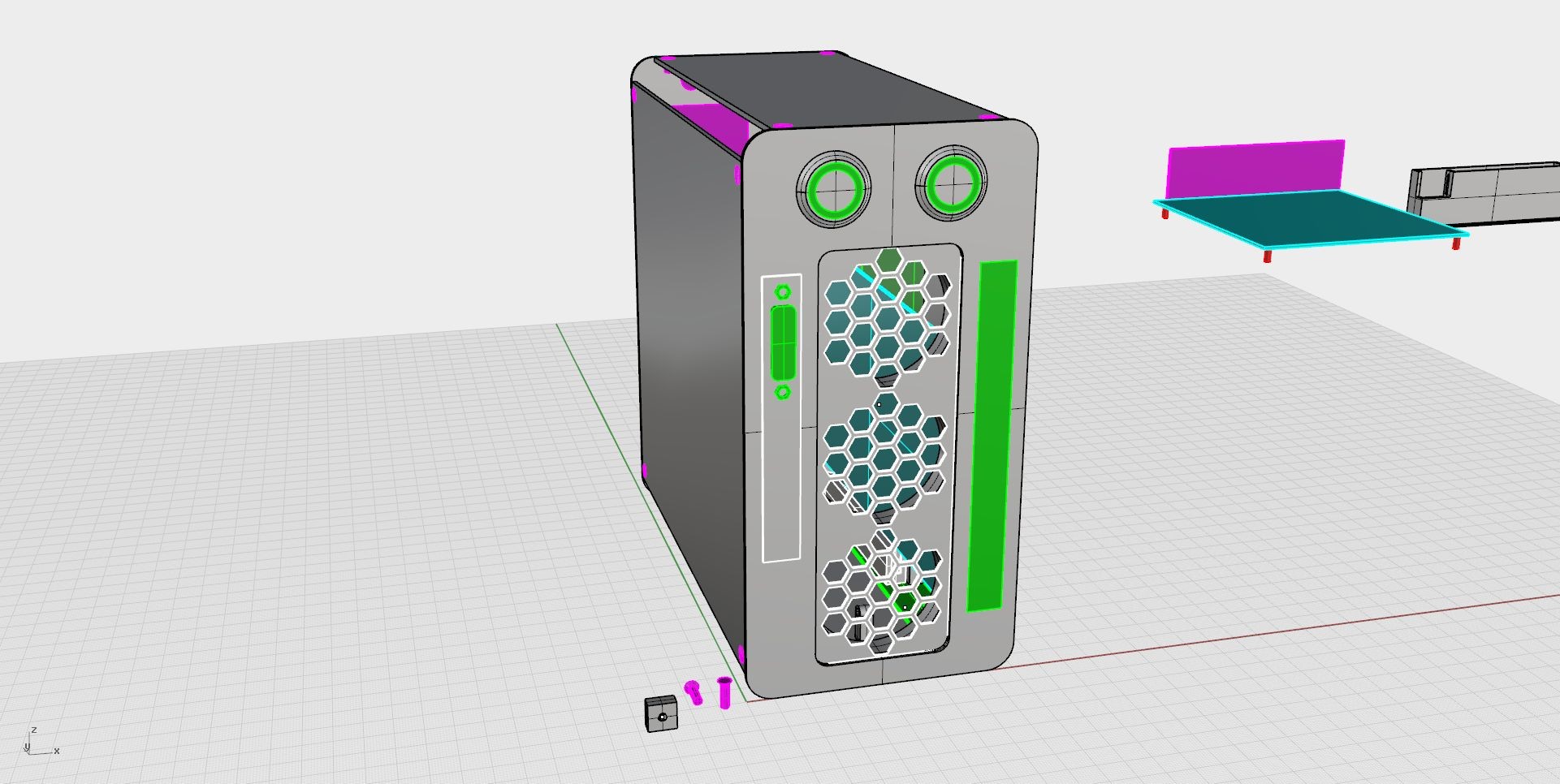

Here's where I'm leaving the project tonight. I fell in love with an asymmetrical front panel, but the reality is this is easier to balance and I think I have a source for okay 5cm fans that will work with this. It also frees up all four corners for mount points for all the side panels.
Downside is that it now looks like a horrified screaming robot, but that has its own charm and appeal too. Maybe there's still something wacky and asymmetrical I can do with power buttons and lights - any ideas?
Tim 🎮

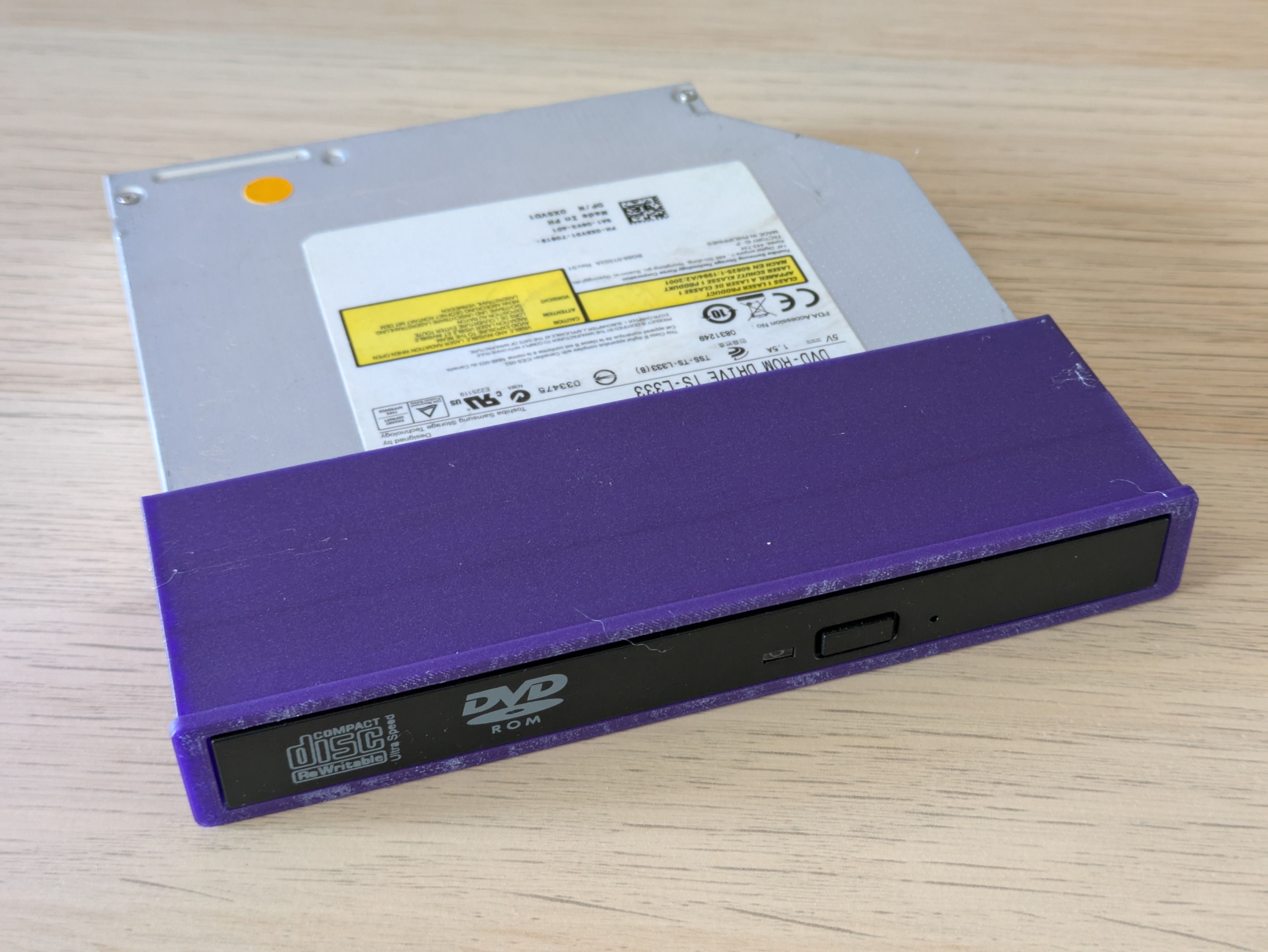

Five iterations in and I think the slim CD mount is final. The screw holes line up, the fit is snug but not too tight, and I have a pretty high degree of confidence it'll work.
See the scratches on the top of this drive? It's dated October 2009, but I bought it just a couple of years ago on eBay as a "new" cheap USB CD drive. You get what you pay for with cheap electronics, and apparently the cheapest price gets you a refurb drive from a junked laptop.
Tim 🎮

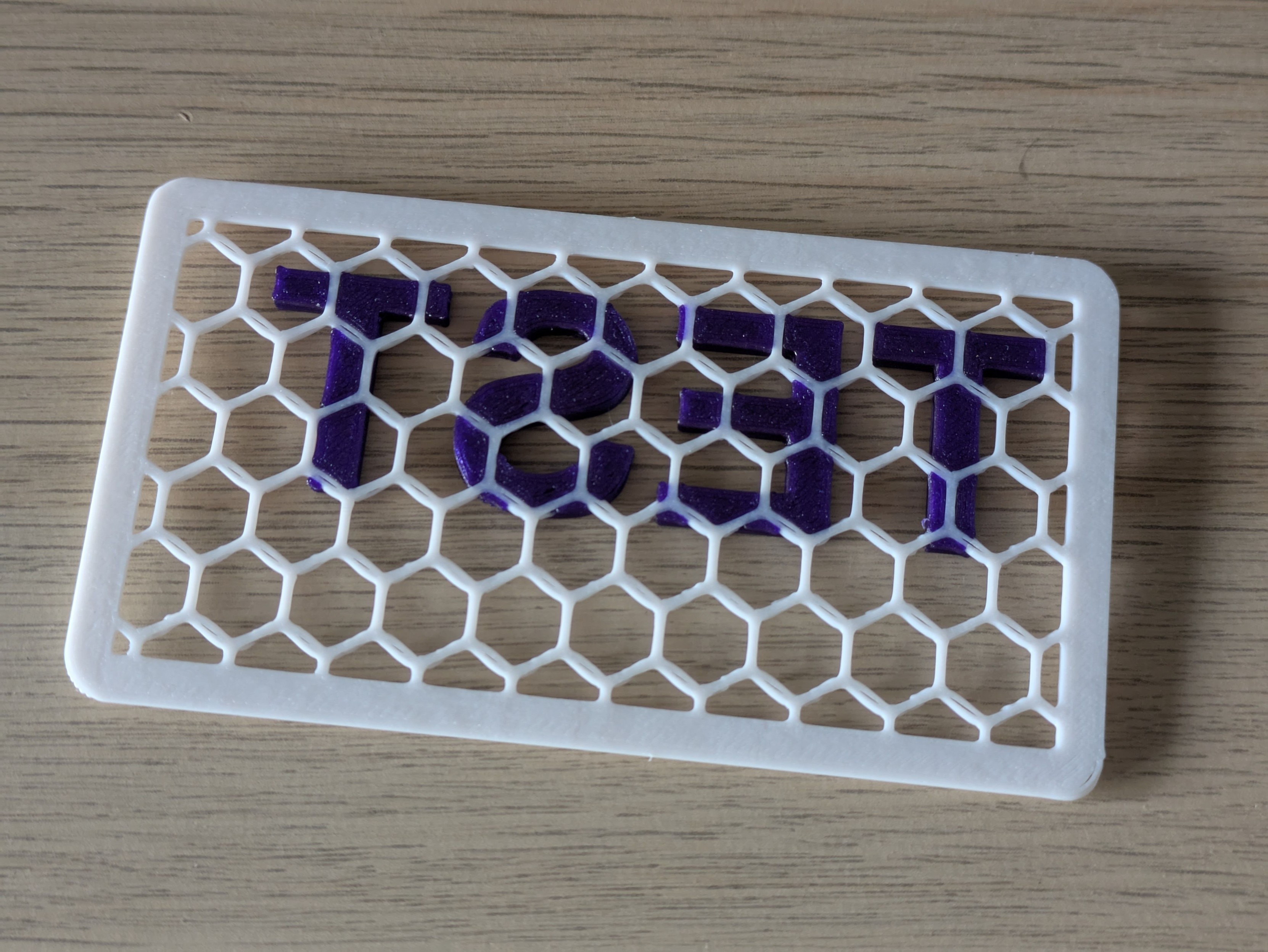

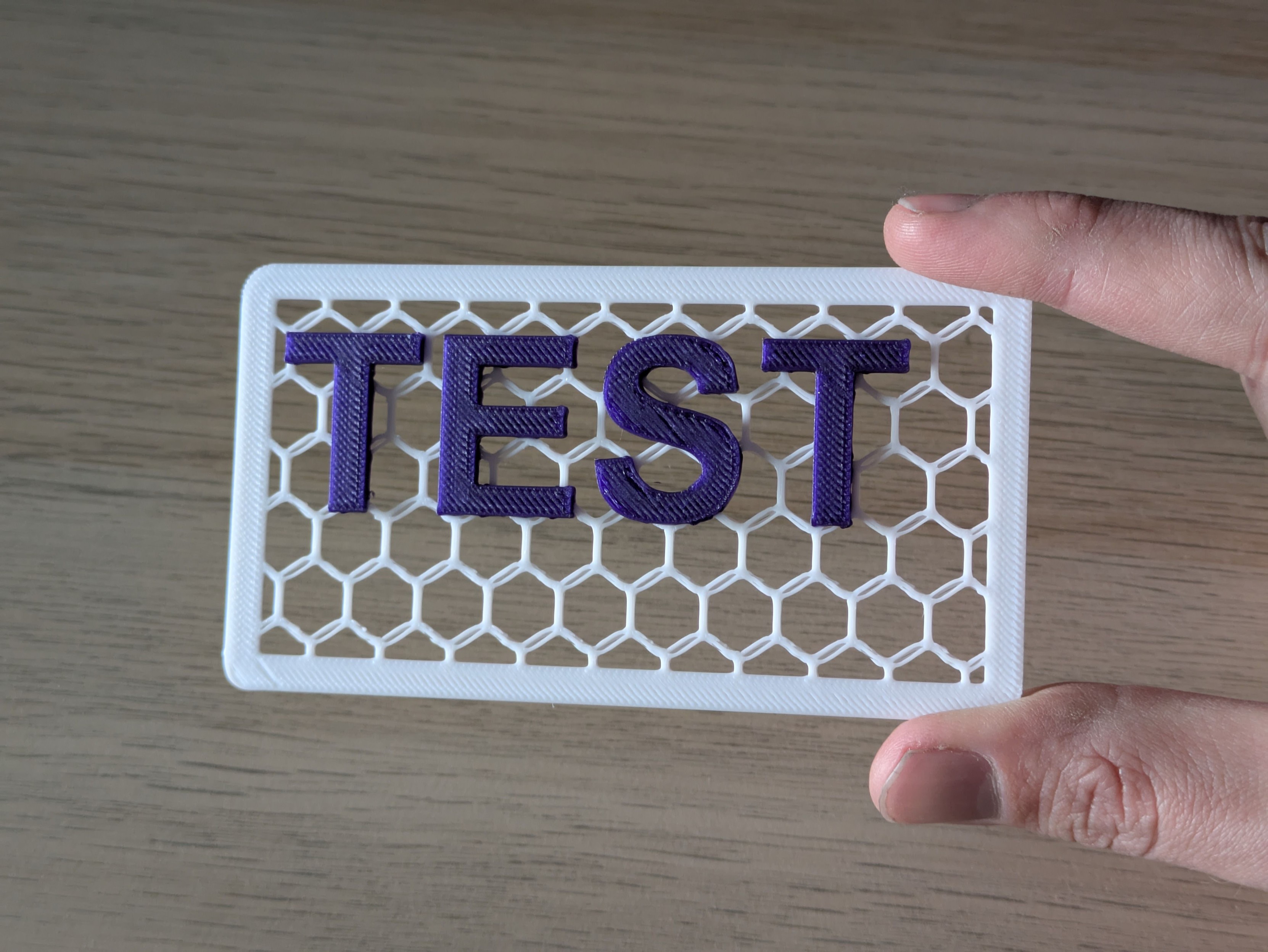

This next one might be more interesting than the same CD drive again. My printer can automatically swap filaments mid layer, so I wanted to try making a 3D printed fan grille with an embedded logo/text. Those letters weren't made separately and glued on - they're printed in place!
I have some tweaks to do to make the grille itself look neat and even, and purple on white was not a great colourway in the end, but I'm calling this a successful concept test. #3DPrinting @3dprinting@a.gup.pe @3dprinting@techhub.social
Tim 🎮
What are the chances that purchasing this actually results in receiving an honest-to-goodness Arctic Cooling product? https://vi.aliexpress.com/item/1005008470980722.html
There's plenty of biggish-brand stuff on Ali these days, is it just counterfeit nonsense or maybe the genuine product sold out the back of the factory? I doubt "Shop1104078524 Store" in China are an official Arctic reseller.
Tim 🎮
Ugh, it's hard to buy a decent 80x80x15mm fan. I miss the days where there'd be 50 different brands of fans in every size overflowing in every computer shop. Now it's all $40 Noctuas and one out-of-stock Silverstone or Deepcool. The industry standardising on 120/140mm fans is great if you're building a PC in a standard gigantic size, but nothing much smaller.
Maybe someone'll rock up to the vintage computer thing tomorrow with a box of fans I can rifle through.
Tim 🎮
Tonight's philosophical question: If you were a very small bag of M2 size screws, where would you hide?
I've managed to use 3mm metric hardware everywhere so far in this project, but slim CD drives mount using 2mm screws. I own....... some, somewhere.
Tim 🎮

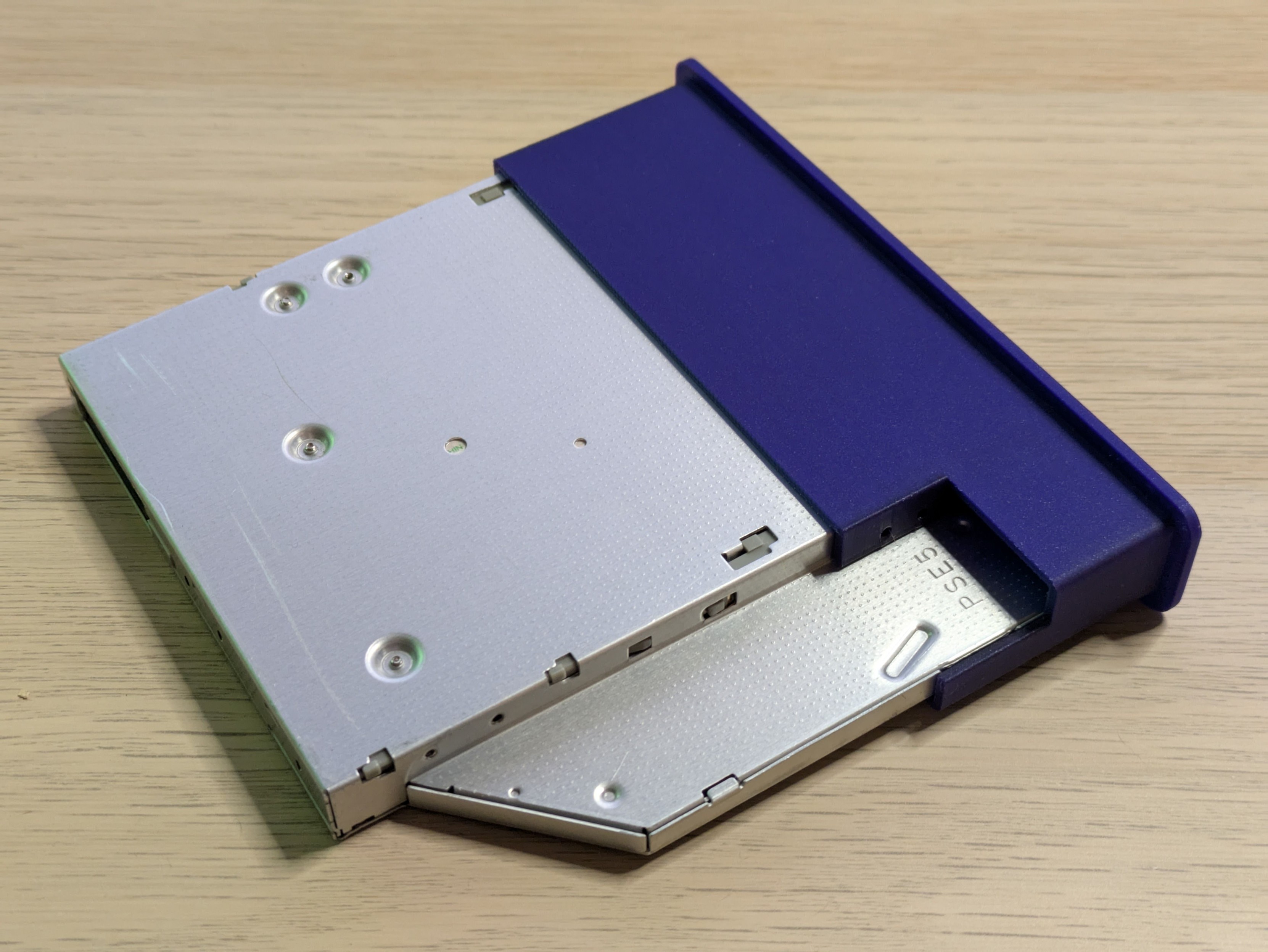

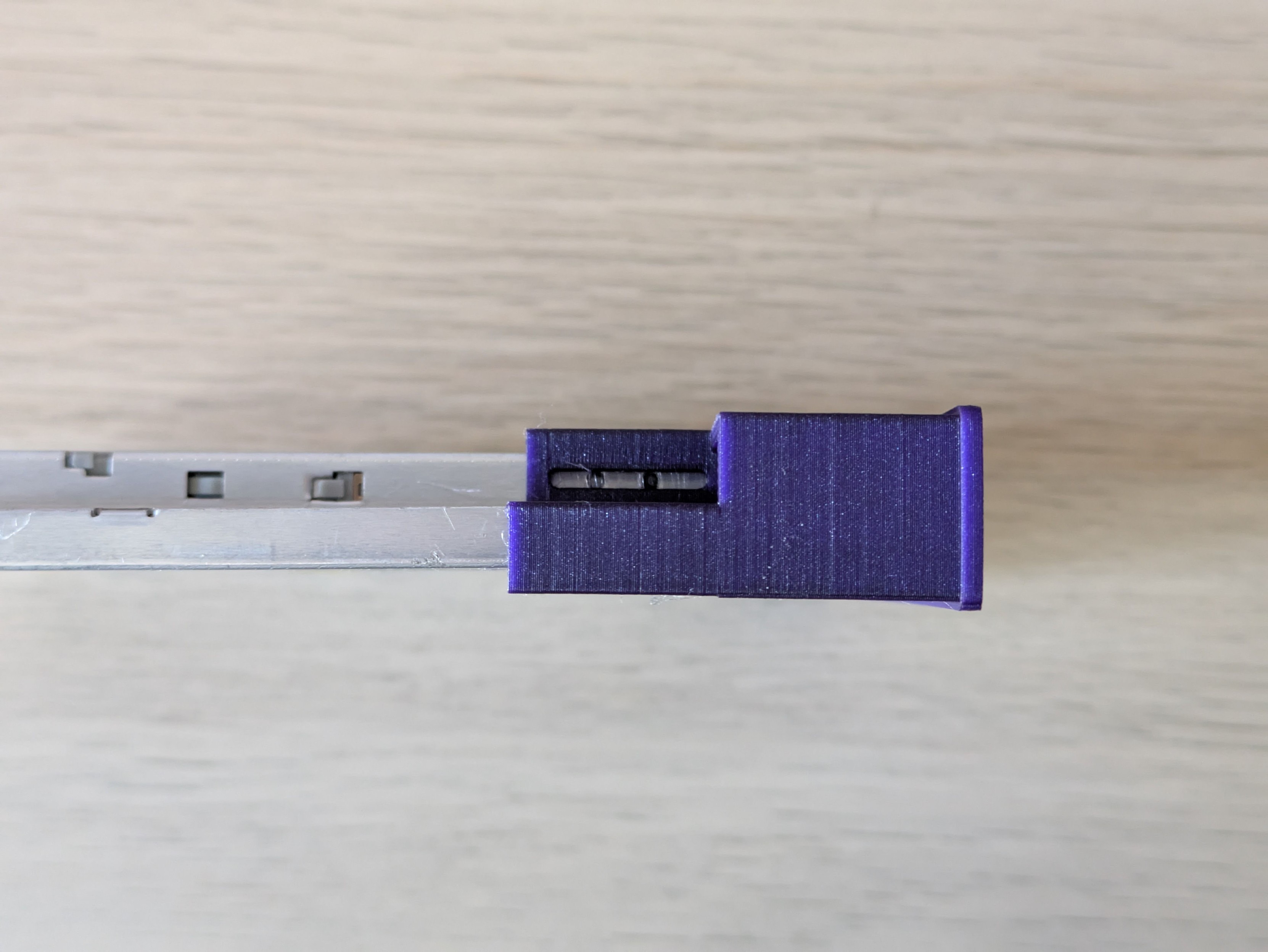

Close enough for tonight - this is a 3D printed mount for a slim CD/DVD drive. These things are a weird shape and take the smallest screws of any standard computer hardware, and it took three goes to get this good a fit.
The white residue on the face is just glue from the print bed - each part that makes up the final case will be cleaned first.
That's the last of the complex parts - most of the rest is stuff like mounting buttons, a cooling fan, and aesthetic tweaks.
Tim 🎮

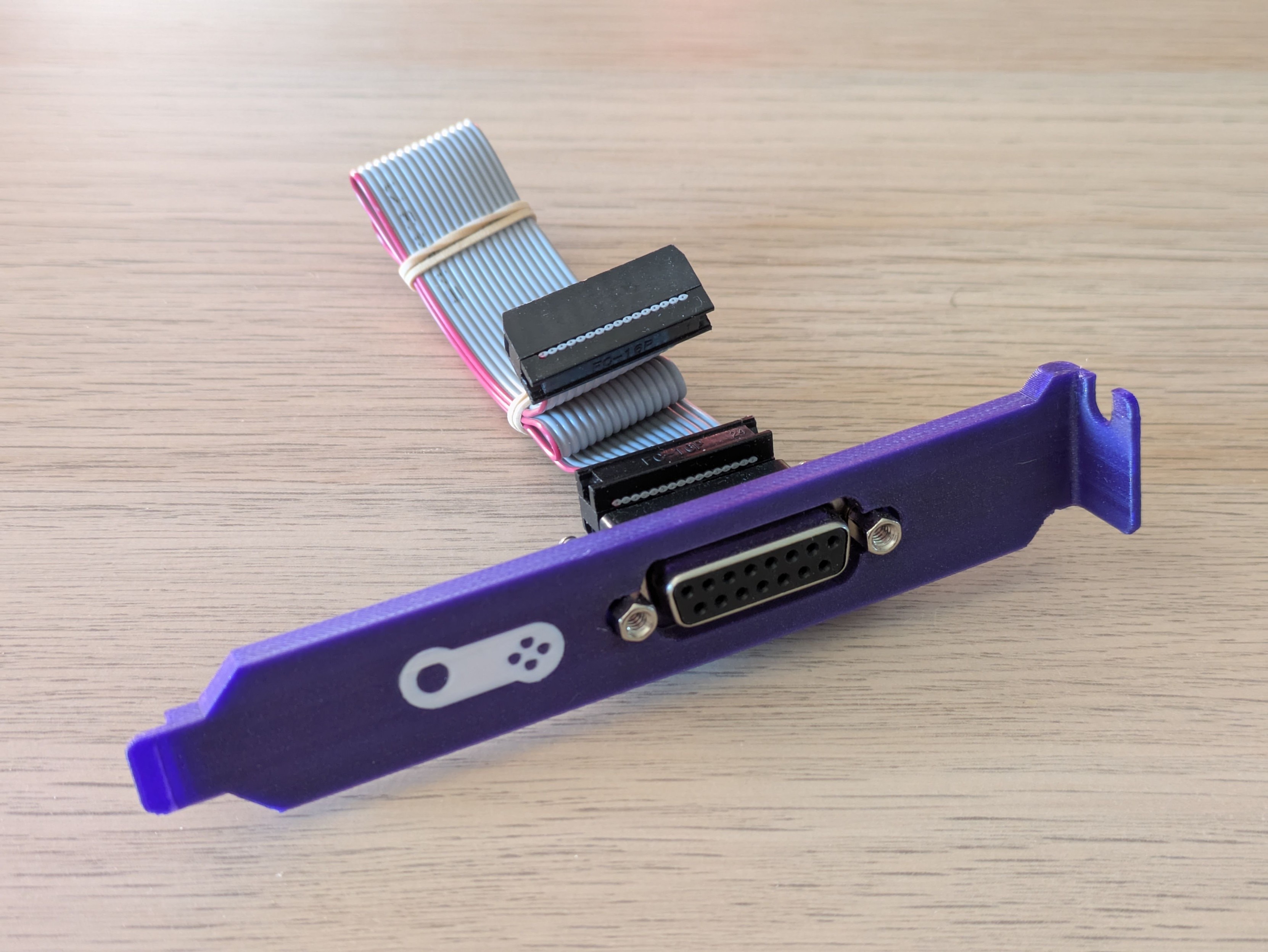

And when I say "not impossible", I mean "I've made them before". If you happen to own a #SoundBlaster card with the 15-pin gameport joystick header but nothing to plug into it, reach out!
Edit: Note that not all cards came with the headers physically installed, so if you've just read this and are about to go browse eBay for SoundBlasters, pay close attention to the photos to see if the pins are even there - I don't know if soldering pins in makes the gameport work or not.
Tim 🎮
Well, that appears to be the required geometry for holding a PCI card. This part will get printed directly to the back wall panel of the case, no need to make it removable.
This model of PCI SoundBlaster includes a bank of pins for plugging in a gameport socket - when new, that would have come on a separate bracket to be screwed in next to the card, but most cards like this are sold without that. They're not impossible to reproduce, though - I'll make my own to attach to the front of this case.
Tim 🎮
There's also the question of whether I try to jam two slots in there, or just the one.
I don't think I need two - the Win98 box will have a Soundblaster there, the XP machine will most likely have a single-slot 8600GT. And fitting a second anything in there will make it tough to include a CD drive or even a 2.5" hard drive in there. So I think I'm planning single-slot for now.
Tim 🎮
Here's why PC cases that look great and proportional and sensible on the front look like a jumble of rectangles on the back - you end up with stuff clustered together, next to wide open spaces you can't make use of. I have a hard target of putting a CD drive in on the front, spaced very neatly and proportionately against the power button and the gameport socket, but doing so means putting the soundcard and its PCI extension board very delicately in the middle of everything.
Tim 🎮
Having wrangled the issue of motherboard placement, today I'm looking at the second-most annoying part of PC cases: expansion slots.
I find these particularly irritating to design for - do you hide the back of the card half an inch into the back of the case? Do you make the top of the bracket protrude? Do you take the bracket off and make something bespoke to screw directly to the card? I have a few things to try out.
Tim 🎮
The relationship between where a motherboard and its backplate sit in space is a complicated one, but I appear to have nailed it in the two really important dimensions. I'll print another of these tomorrow that slides the board about 2mm closer to the back of the case.
If the rest of this goes as smoothly as this part has, I might aim to make two of these cases - one for a 98-era PC, and one for an XP-era one. It'll be a challenge fitting two different sets of requirements into the same design.
Tim 🎮
Philosophical question for tonight. If you were an old ITX motherboard, where would you hide?
Tim 🎮
Follow-up philosophical question: if you were an old ITX motherboard's *backplate*, where would you hide?
Tim 🎮
A much later render of the concept on the right, here. The top half of the case held the PC itself, the video card and power supply took up the bottom half, so the front grille got divided into two parts. A 180cm fan sat behind this, and actually blew out forwards through the *front* of the case - the grille was painted with thermochromic material so it changed from black to white in places as hot air was exhausted.
I'll try and find photos of the finished case and that colour changing effect.
Tim 🎮
Some old renders of a SGI-inspired project from a few years back. I had a 3D printer at this point, but not one with a bed big enough to make 20x20cm panels, so the structure was built using laser-cut acrylic with 3D printed brackets bolted onto it.
I did actually get a mostly functioning PC case out of this idea for a while, and there are Many Learnings from that project that have rolled forward into present ones. Unfinished projects are never waste if you learn from them!
