✧✦Catherine✦✧
which tool should i develop today?
i'm thinking about one that uses JTAG boundary scan to help you discover the pinout of boards you reverse engineer
basically, you probe a board with a flywire, and glasgow tells you which of the FPGA (or whatever) pins you are touching by driving the flywire with a unique waveform and then correlating it with the device pin captures using INTEST
✧✦Catherine✦✧
the only thing this would miss is voice input that lets you dictate your finds into a spreadsheet, but that's probably easy to do with `glasgow script` externally
dram🎀
@whitequark there was this one thing i heard where someone wrote a bitstream to an fpga to have every pin blast out its own name in UART but i can't find it
✧✦Catherine✦✧
@AMS excellent idea
AMS
@whitequark Have that script trigger a webcam capture. End up with a directory full of .jpg all ready to go.
✧✦Catherine✦✧
@AMS I really like this, I have a microscope that can be a webcam and that would make reversing PCBs so much faster
✧✦Catherine✦✧
i have it working :D :D

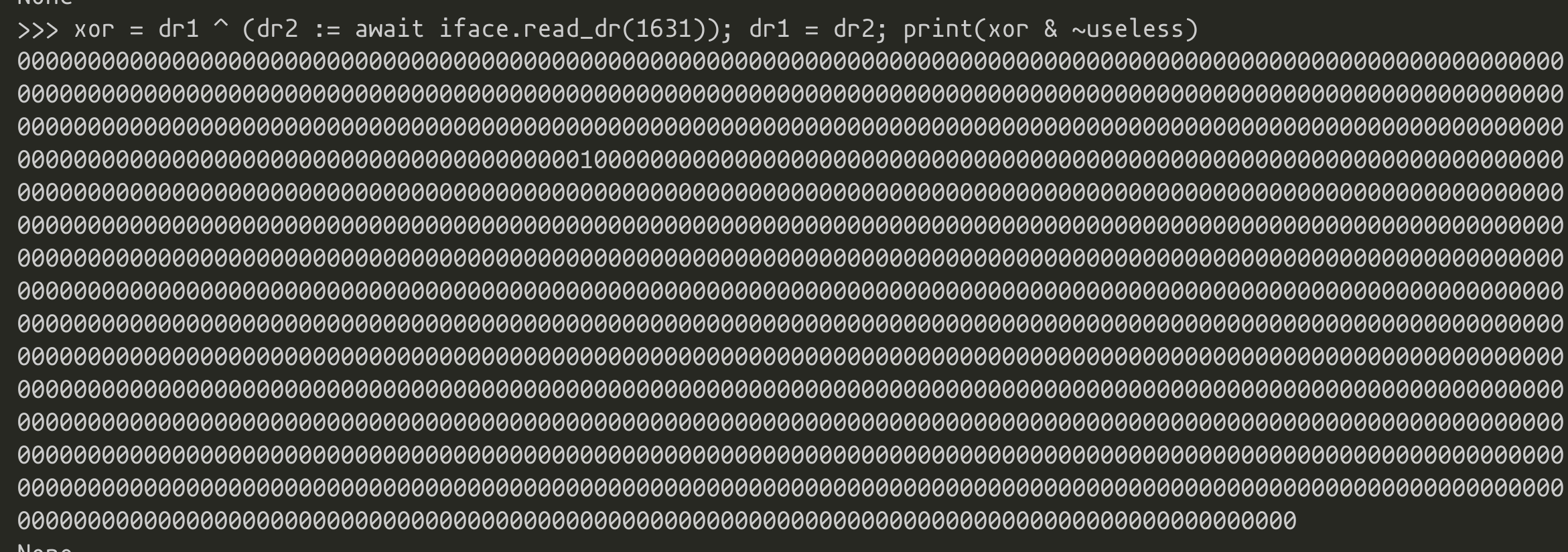

i touched a pin with my multimeter and here it showed up in the BSCAN register (andn'd with the list of every pin that toggles when idle)
✧✦Catherine✦✧
the next steps are to parse the BSDL file for this device (ugh) and to map the position of this 1 into a pin name
✧✦Catherine✦✧
wrote a BSDL parser! (none of the two existing Python ones are quite good enough to depend on in Glasgow)
✧✦Catherine✦✧
@malwareminigun it... is in spirit, if not in name
Billy O'Neal
@whitequark Please tell me it’s “Bull Shit Definition Language”
✧✦Catherine✦✧

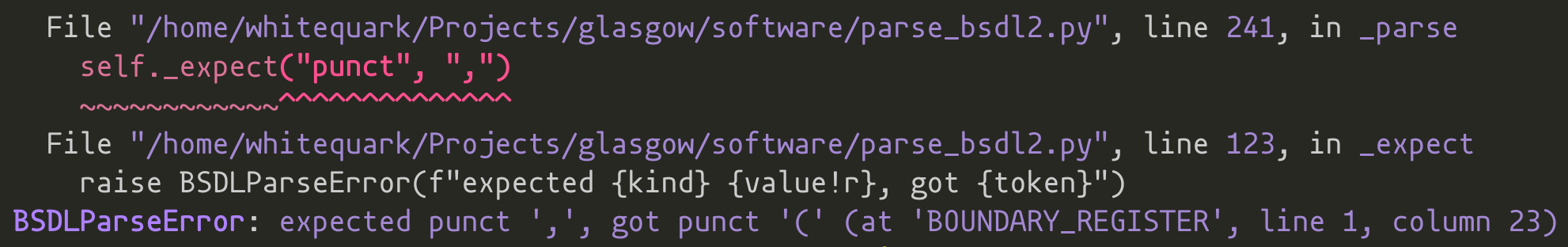

even when i write a shotgun parser, i put source location support into it :p
